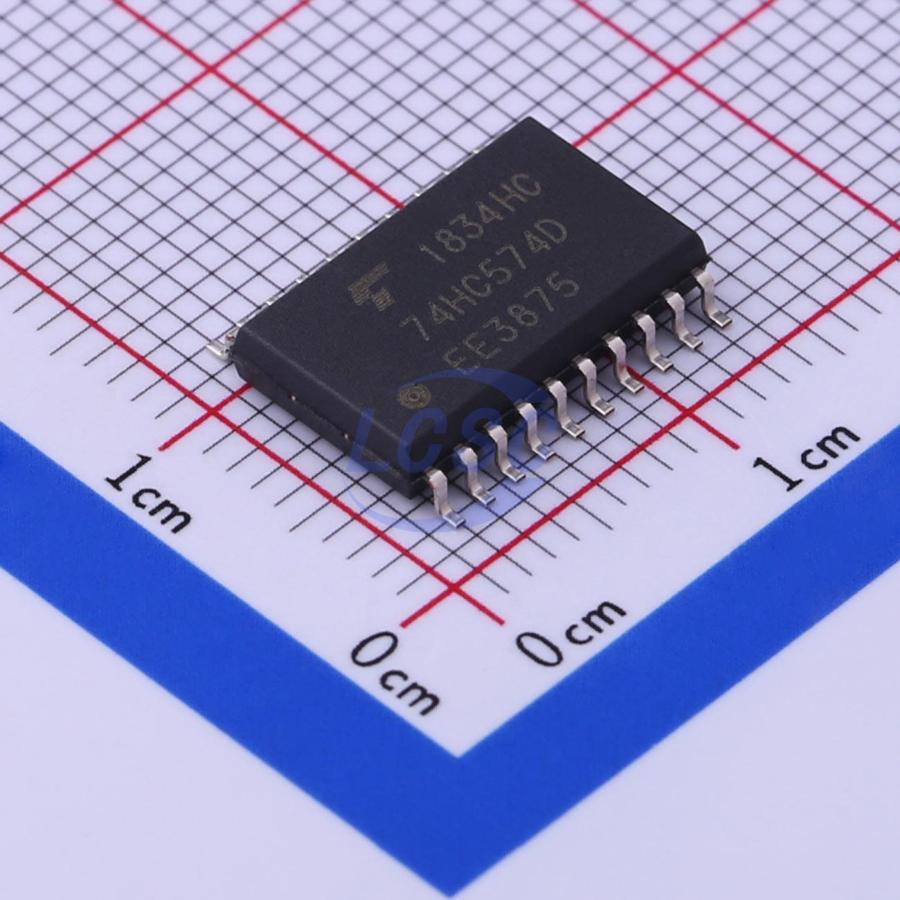

74HC574D(BJ,K)
2V~6V 8 1 15ns@6V,50pF SOIC-20-300mil Flip Flops
Octal D-Type Flip Flop with 3-State Outputs
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74HC574D(BJ,K)
- Store part #
- C435813
- Package / case
- SOIC-20-300mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,310 in stock
#C435813
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.21 | ₹40.21 |
| 10+ | ₹35.43 | ₹354.30 |
| 30+ | ₹33.25 | ₹997.50 |
| 100+ | ₹30.87 | ₹3,087.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹40.21
₹40.21
excl. GST
₹47.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC574D(BJ,K)
₹40.21 for 1 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 8
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Series
- 74HC Series
- Current - Output High(IOH)
- 7.8mA
- Number of Elements
- 1
- Current - Output Low(IOL)
- 7.8mA
- Setup Time
- 75ns;15ns;13ns
- Quiescent Current
- 4uA
- Hold Time
- 0ns
- Propagation Delay
- 15ns@6V,50pF
- Trigger Type
- Falling Edge
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.758 g
Overview
The 74HC574D is a high speed CMOS OCTAL FLIP-FLOP with 3-STATE OUTPUT fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. These 8-bit D-type flip-flops are controlled by a clock input (CK) and an output enable input (OE (overline)). When the OE (overline) input is high, the eight outputs are in a high impedance state. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: f_MAX = 59 MHz (typ.) at V_CC = 6.0 V
- Low power dissipation: I_CC = 4.0 μA (max) at T_a = 25 ℃
- Balanced propagation delays: tp_LH ≈ tp_HL
- Wide operating voltage range: V_CC(opr) = 2.0 V to 6.0 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC574DTR(XBLW)#C18723529XBLW · SOP-20 | XBLW | SOP-20 | 2,760 | ₹27.73 · 2,760 in stock | View |
