Nexperia

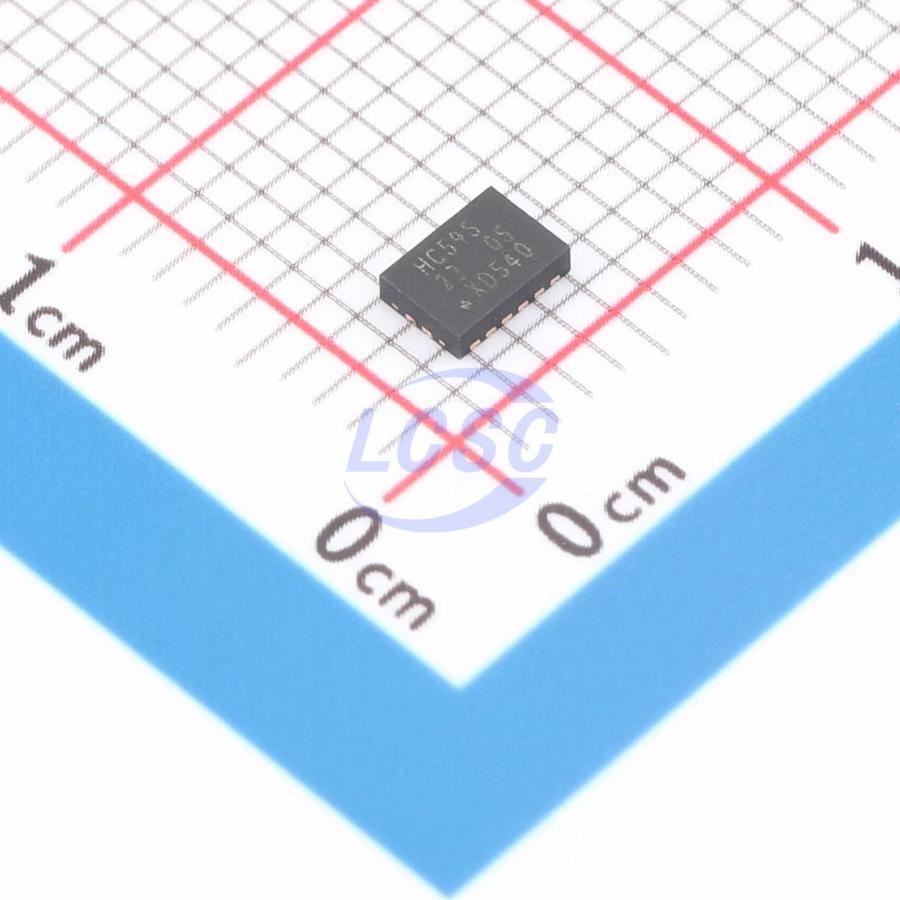

74HC595BQ-Q100,115

2V~6V 1 35mA 19ns@4.5V,50pF Serial-to-Parallel or Serial DHVQFN-16-EP(2.5x3.5) Shift Registers RoHS

DHVQFN-16-EP(2.5x3.5)ROHS3 CompliantActive

8-bit serial-in, serial or parallel-out shift register with output latches; 3-state

Manufacturer: Nexperia
Manufacturer part #: 74HC595BQ-Q100,115
Store part #: C547123
Package / case: DHVQFN-16-EP(2.5x3.5)
Category: Shift Registers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,685 in stock

#C547123

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹40.52	₹202.60
50+	₹31.77	₹1,588.50
150+	₹28.01	₹4,201.50
500+	₹23.32	₹11,660.00
3,000+	₹21.25	₹63,750.00
6,000+	₹19.99	₹1,19,940.00

Quantity (min 5, multiples of 5)

5 × ₹40.52

₹202.60

excl. GST

₹239.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC595BQ-Q100,115

₹202.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating temperature: -40℃~+125℃
Pd - Power Dissipation: 500mW
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output High(IOH): 35mA
Series: 74HC
Current - Output Low(IOL): 35mA
Number of Elements: 1
Output Current: 35mA
Features: Asynchronous clear function;Output enable
Propagation Delay: 19ns@4.5V,50pF
Function: Serial-to-Parallel or Serial

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.058 g

Overview

The 74HC595-Q100; 74HCT595-Q100 is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks. The device features a serial input (DS) and a serial output (Q7S) to enable cascading and an asynchronous reset MR input. A LOW on MR will reset the shift register. Data is shifted on the LOW-to-HIGH transitions of the SHCP input. The data in the shift register is transferred to the storage register on a LOW-to-HIGH transition of the STCP input. If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register. Data in the storage register appears at the output whenever the output enable input (OE) is LOW. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the registers. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Serial-to-parallel data conversion
Remote control holding register

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40℃ to +85℃ and from -40℃ to +125℃
8-bit serial input
8-bit serial or parallel output
Storage register with 3-state outputs
Shift register with direct clear
100 MHz (typical) shift out frequency
Complies with JEDEC standard no. 7A
Input levels:
For 74HC595-Q100: CMOS level For 74HCT595-Q100: TTL level
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
DHVQFN package with Side-Wettable Flanks enabling Automatic Optical Inspection (AOI) of solder joints
