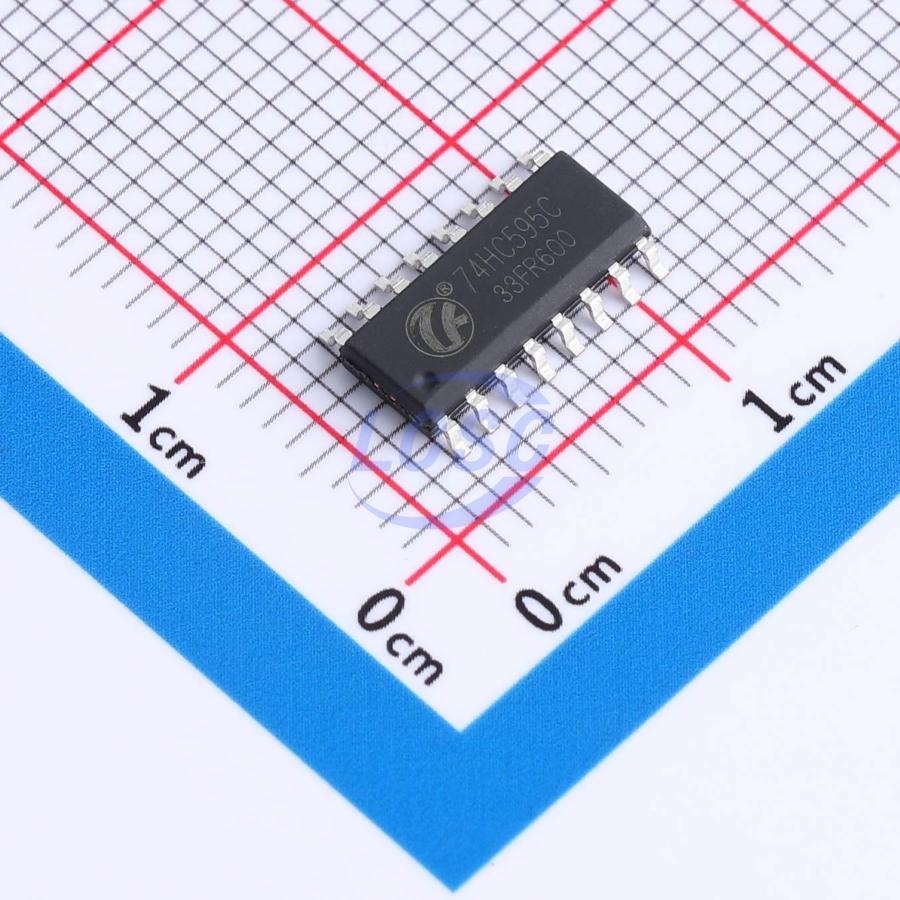

74HC595NS16ACRDQ
2V~6V 1 6mA Serial-to-Serial or Parallel SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- GR
- Manufacturer part #
- 74HC595NS16ACRDQ
- Store part #
- C52766795
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C52766795
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.70 | ₹77.00 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 1,000+ | ₹4.58 | ₹4,580.00 |
| 4,000+ | ₹4.07 | ₹16,280.00 |
| 8,000+ | ₹3.82 | ₹30,560.00 |
10 × ₹7.70
₹77.00
excl. GST
₹90.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HC595NS16ACRDQ
₹77.00 for 10 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Number of Elements
- 1
- Output Current
- 6mA
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.415 g
Overview
The 74HC595 device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register features parallel three-state outputs. Separate clocks are provided for both the shift register and storage register. The shift register has a direct clear input, a serial input, and a serial output for cascading. When the output enable input is high, the outputs are in a high-impedance state.
Key features
- 8-bit serial-in, parallel-out shift
- Wide operating voltage range: 2V to 6V
- High-current tri-state outputs capable of driving up to 15 LS-TTL loads
- Low power consumption, maximum ICC of 10uA
- ±6mA output drive capability at 5V
- Maximum input current of 1uA
- Shift register with direct clear function
