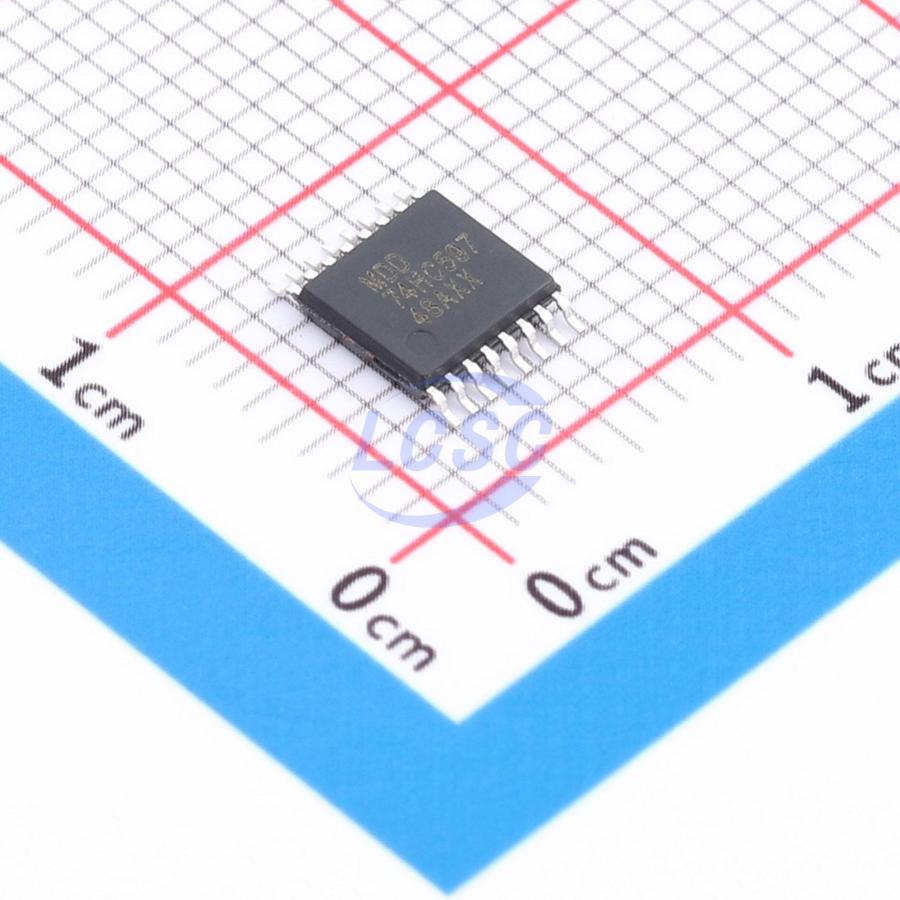

74HC597PW
2.8V~6V 1 25mA 13ns@6V,50pF Parallel or Serial to Serial TSSOP-16 Shift Registers
TSSOP-16RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC597PW
- Store part #
- C54411087
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,375 in stock
#C54411087
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.81 | ₹139.05 |
| 50+ | ₹21.80 | ₹1,090.00 |
| 150+ | ₹19.22 | ₹2,883.00 |
| 500+ | ₹16.01 | ₹8,005.00 |
| 2,500+ | ₹14.58 | ₹36,450.00 |
| 5,000+ | ₹13.72 | ₹68,600.00 |
5 × ₹27.81
₹139.05
excl. GST
₹164.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC597PW
₹139.05 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2.8V~6V
- Output Type
- Push-Pull
- Series
- 74HC
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 13ns@6V,50pF
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.237 g
Overview
The 74HC597 and 74HCT597 are 8-bit shift registers with input latches. Each consists of an 8-bit storage register and an 8-bit shift register with parallel input and serial output. Both the storage register and shift register feature positive edge-triggered clocks. The shift register also has direct load (from storage) and clear inputs. Inputs include clamping diodes, allowing the inputs to be connected to voltages exceeding VCC through current-limiting resistors.
Key features
- Wide supply voltage range: 2.8 V to 6.0 V
- High noise immunity
- CMOS low power consumption
- 8-bit parallel storage register input
- Shift register with direct overriding load and clear
- Latch-up performance exceeds 250 mA
- JEDEC compliant:
- JESD8C (2.8 V to 3.6 V)
- JESD7A (2.8 V to 6.0 V)
- Input levels:
- 74HC597: CMOS levels
- 74HCT597: TTL levels
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
- Operating temperature range: -40 °C to +85 °C and -40 °C to +125 °C
