Nexperia

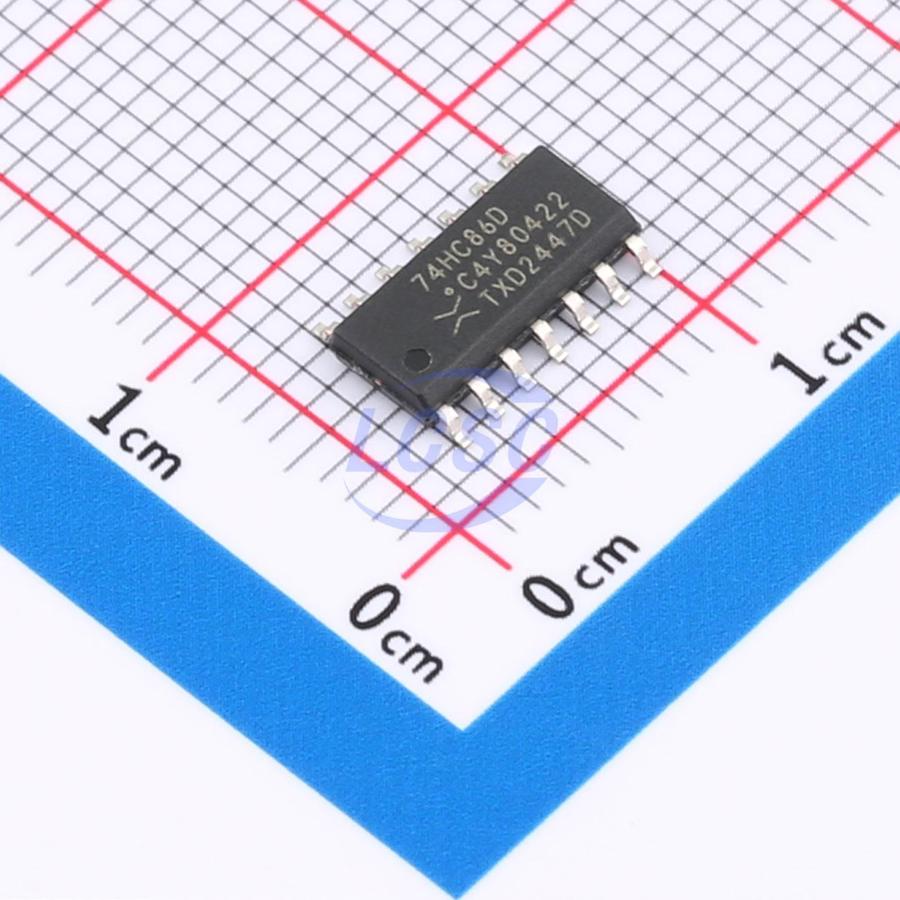

74HC86D,653

StandardCMOS 2V~6V 20ns@6V,50pF 2uA SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

Quad 2-input EXCLUSIVE-OR gate

Manufacturer: Nexperia
Manufacturer part #: 74HC86D,653
Store part #: C5955
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48,510 in stock

#C5955

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹20.68	₹103.40
50+	₹16.05	₹802.50
150+	₹14.06	₹2,109.00
500+	₹11.59	₹5,795.00
2,500+	₹10.49	₹26,225.00
5,000+	₹9.83	₹49,150.00

Quantity (min 5, multiples of 5)

5 × ₹20.68

₹103.40

excl. GST

₹122.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC86D,653

₹103.40 for 5 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74HC Series
Voltage - Supply: 2V~6V
Output Logic Level - Low: 0V~100mV;160mV~260mV
Propagation Delay: 20ns@6V,50pF
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 5.48V~5.81V;5.9V~6V
Quiescent Current(Iq): 2uA
Current - Output High(IOH): 5.2mA
Number of Channels: 4;2
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.322 g

Overview

The 74HC86; 74HCT86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Logic circuit design
Digital signal processing
Electronic device interfaces
Communication systems
Computer hardware
Test equipment
Control systems
Automation equipment
Consumer electronics
Medical devices
Industrial control
Instrumentation
Sensor interfaces
Data transmission
Signal conversion
Power management
Low-power applications
Embedded systems
Microcontroller peripheral circuits
Education and experimentation

Key features

Wide supply voltage range from 2.0 V to 6.0 V
CMOS low power dissipation
High noise immunity
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
Input levels:
For 74HC86: CMOS level
For 74HCT86: TTL level
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Specified from -40 °C to +85 °C and from -40 °C to +125 °C

Alternatives

Similar parts — check the datasheet before substituting.
