NexperiaDatasheet (PDF)

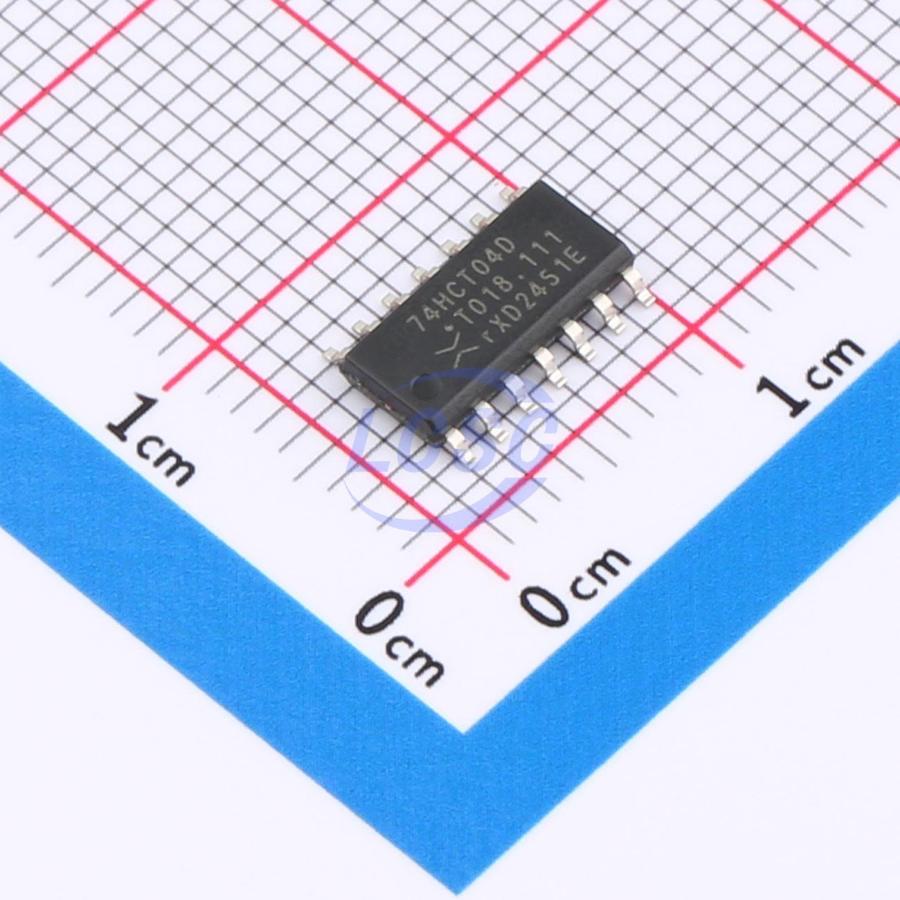

74HCT04D,653
4.5V~5.5V 19ns@4.5V,50pF 2uA 6 SO-14 Gates and Inverters RoHS
SO-14ROHS3 CompliantActive
Hex inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT04D,653
- Store part #
- C672096
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,385 in stock
#C672096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.97 | ₹229.85 |
| 50+ | ₹35.73 | ₹1,786.50 |
| 150+ | ₹31.36 | ₹4,704.00 |
| 500+ | ₹25.89 | ₹12,945.00 |
| 2,500+ | ₹23.46 | ₹58,650.00 |
| 5,000+ | ₹21.99 | ₹1,09,950.00 |
5 × ₹45.97
₹229.85
excl. GST
₹271.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT04D,653
₹229.85 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 19ns@4.5V,50pF
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.324 g
Overview
The 74HC04; 74HCT04 is a hex inverter. The inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Digital logic circuits
- Signal processing
- Voltage conversion
- Level shifting
- Current limiting
- Noise suppression
- Low-power applications
- High-temperature environments
- Wide voltage range applications
- CMOS and TTL compatible systems
- Electronic device protection
- ESD protection
- Data transmission
- Signal inversion
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC04: CMOS level
- For 74HCT04: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
