MDD(Microdiode Semiconductor)Datasheet (PDF)

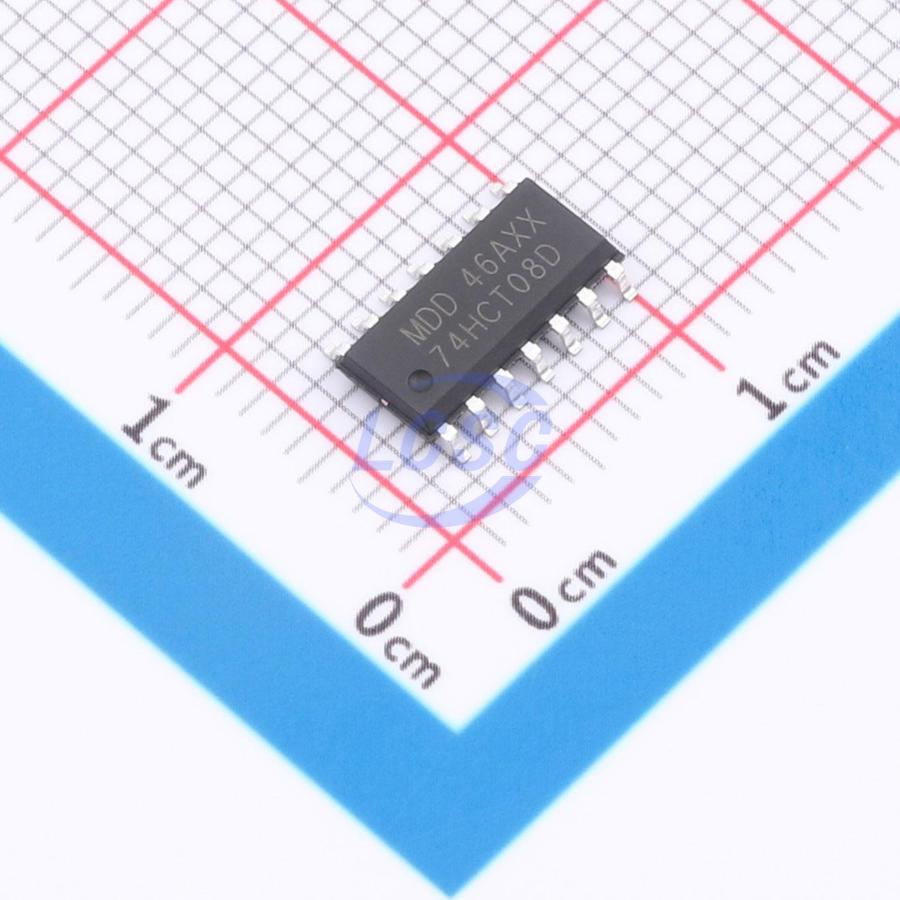

74HCT08D
TTL-compatible CMOS 4.5V~5.5V 16ns@4.5V,15pF SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HCT08D
- Store part #
- C53552916
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,640 in stock
#C53552916
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.28 | ₹121.40 |
| 50+ | ₹19.02 | ₹951.00 |
| 150+ | ₹16.78 | ₹2,517.00 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 2,500+ | ₹12.73 | ₹31,825.00 |
| 5,000+ | ₹11.97 | ₹59,850.00 |
5 × ₹24.28
₹121.40
excl. GST
₹143.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT08D
₹121.40 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 16ns@4.5V,15pF
- Output Logic Level - Low
- 100mV;330mV
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.84V
- Number of Channels
- 2;4
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
74HC08 and 74HCT08 are quad 2-input AND gates. The inputs include clamping diodes, which allow the use of current-limiting resistors to connect inputs to voltages exceeding VCC.
Key features
- Wide supply voltage range: 2.0 V to 6.0 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- JEDEC compliant:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- 74HC08: CMOS level
- 74HCT08: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
