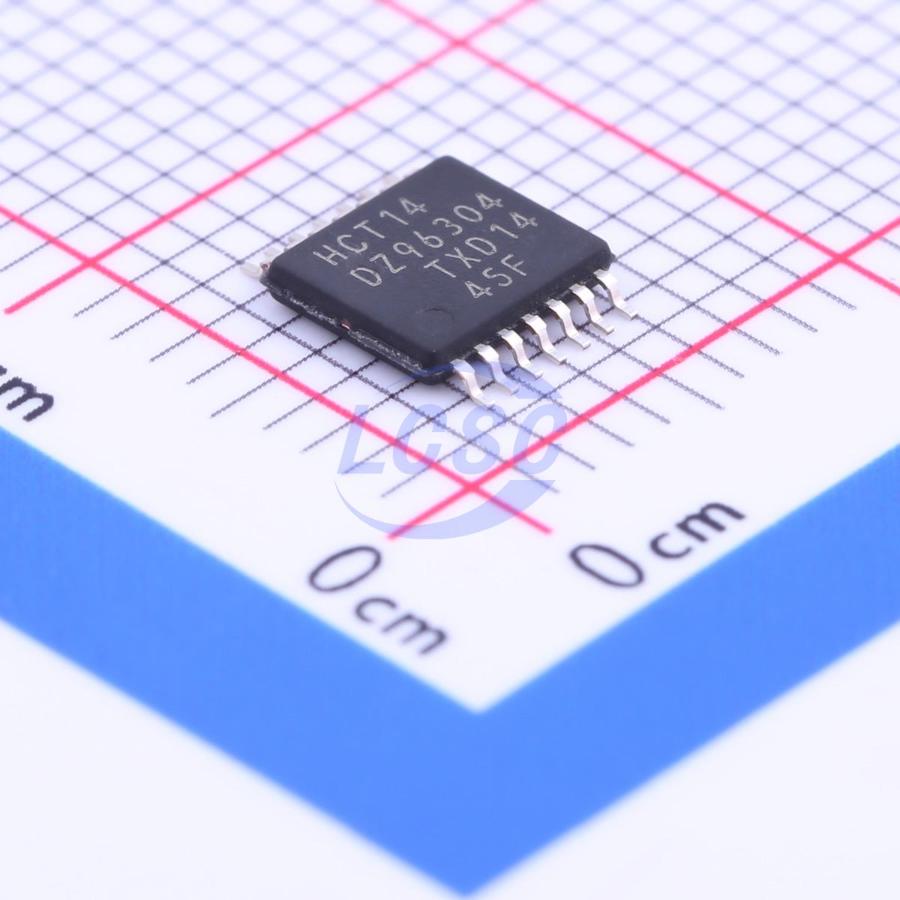

Hex inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT14PW,118
- Store part #
- C5968
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40,875 in stock
#C5968
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.25 | ₹121.25 |
| 50+ | ₹18.91 | ₹945.50 |
| 150+ | ₹16.60 | ₹2,490.00 |
| 500+ | ₹13.73 | ₹6,865.00 |
| 2,500+ | ₹12.46 | ₹31,150.00 |
| 5,000+ | ₹11.70 | ₹58,500.00 |
5 × ₹24.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT14PW,118
₹121.25 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 34ns@4.5V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 1.9V~2.1V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74HC14; 74HCT14 is a hex inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of V<sub>CC</sub>. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Unlimited input rise and fall times
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
