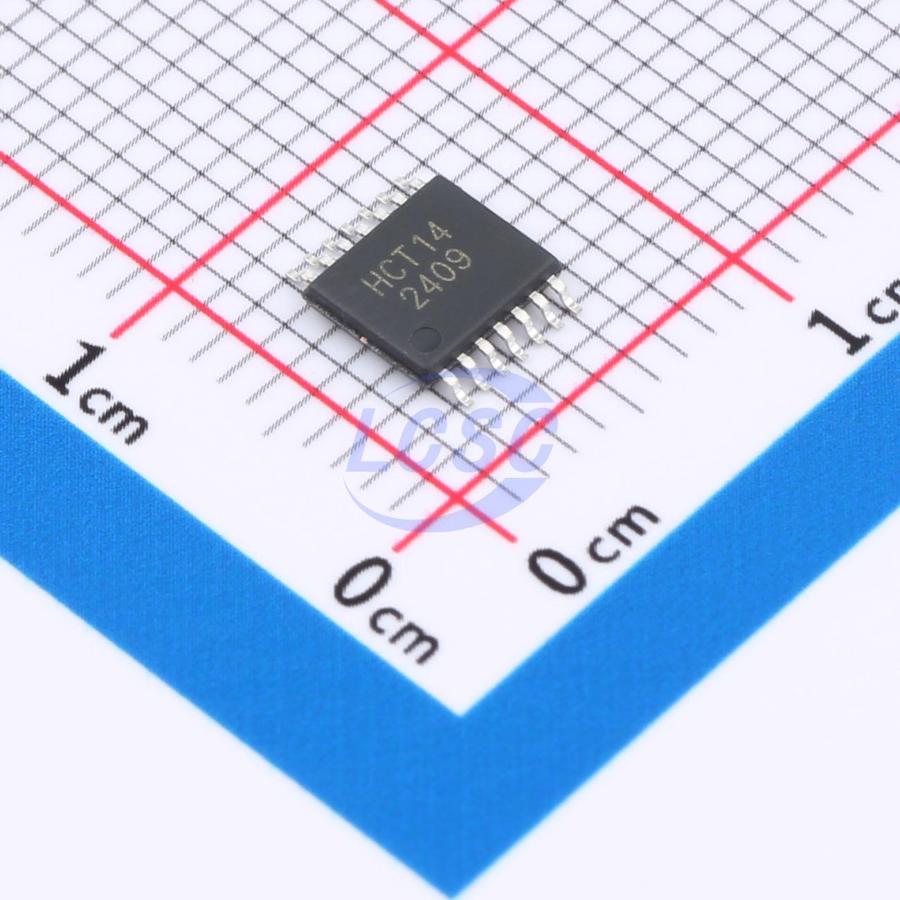

EM74HCT14PW
Schmitt trigger 4.5V~5.5V 16ns@4.5V,15pF 40uA 6 TSSOP-14L Gates and Inverters
TSSOP-14LRoHSActive
Hex inverting Schmitt trigger
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HCT14PW
- Store part #
- C49188187
- Package / case
- TSSOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C49188187
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.23 | ₹91.15 |
| 50+ | ₹15.92 | ₹796.00 |
| 150+ | ₹14.92 | ₹2,238.00 |
| 500+ | ₹13.69 | ₹6,845.00 |
| 3,000+ | ₹13.14 | ₹39,420.00 |
| 6,000+ | ₹12.82 | ₹76,920.00 |
5 × ₹18.23
₹91.15
excl. GST
₹107.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HCT14PW
₹91.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 16ns@4.5V,15pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.191 g
Overview
The EM74HC14 and EM74HCT14 are hex inverters with Schmitt-trigger inputs. The devices feature reduced input threshold levels for interfacing with TTL logic levels. The Schmitt-trigger inputs convert slowly changing input signals into clean, well-defined, bounce-free output signals.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Unlimited rise and fall times
- JEDEC compliant: JESD8C (2.7V to 3.6V), JESD7A (2.0V to 6.0V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
