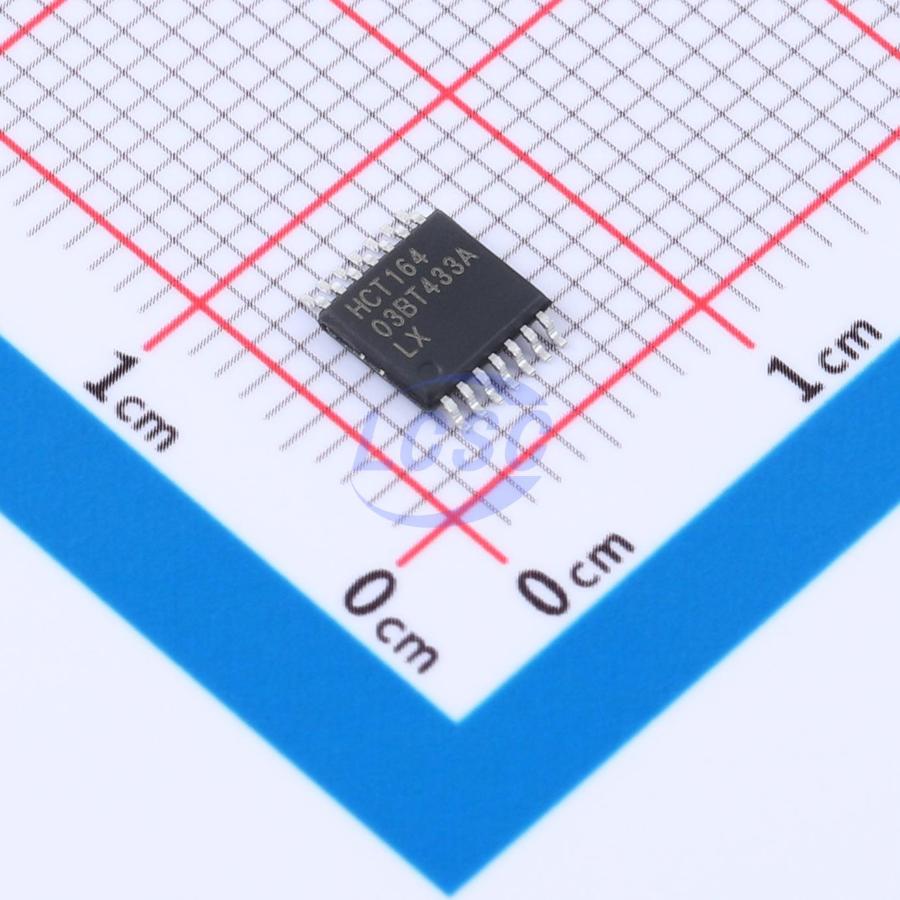

74HCT164PW,118-JSM
4.5V~5.5V 1 25mA 14ns@5V,15pF Serial-to-Parallel TSSOP-14 Shift Registers RoHS
TSSOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HCT164PW,118-JSM
- Store part #
- C53114357
- Package / case
- TSSOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C53114357
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.68 | ₹88.40 |
| 50+ | ₹14.08 | ₹704.00 |
| 150+ | ₹12.28 | ₹1,842.00 |
| 500+ | ₹10.93 | ₹5,465.00 |
| 2,500+ | ₹9.86 | ₹24,650.00 |
| 5,000+ | ₹9.31 | ₹46,550.00 |
5 × ₹17.68
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
74HCT164PW,118-JSM
₹88.40 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Push-Pull
- Current - Output High(IOH)
- 25mA
- Series
- 74HCT
- Current - Output Low(IOL)
- 25mA
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 14ns@5V,15pF
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
The 74HC/HCT164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (DSA and DSB) and eight parallel data outputs (Q0 to Q7). Data can be entered through either DSA or DSB, where either input can serve as an active-HIGH enable to control data entry through the other. Data is shifted on the rising edge of the clock input (CP). When the master reset input (MR) is LOW, the register is cleared and all outputs are forced LOW, regardless of all other input states. Input clamping diodes are provided, allowing the input ports to be connected to voltages higher than VCC through current-limiting resistors.
Key features
- Two input level versions available: 74HC164 (CMOS level) and 74HCT164 (TTL level)
- Gated serial data input
- Integrated asynchronous reset
- Operating temperature range: -40℃ to +125℃
- Multiple package options: DIP14, SOP14, TSSOP14
