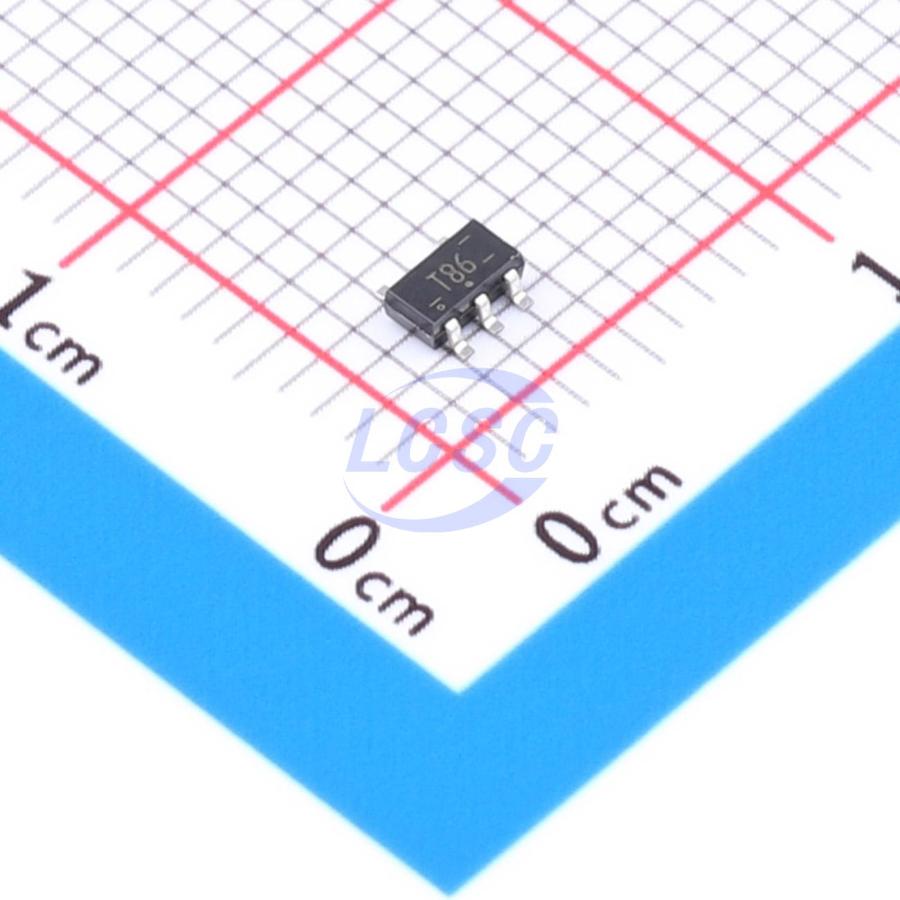

74HCT1G86GV,125
₹174.45 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 13ns@4.5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;4.13V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 2mA
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The 74HC1G86; 74HCT1G86 is a single 2-input EXCLUSIVE-OR gate. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC1G86: CMOS level For 74HCT1G86: TTL level
- CMOS low power dissipation
- High noise immunity
- Symmetrical output impedance
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
