NexperiaDatasheet (PDF)

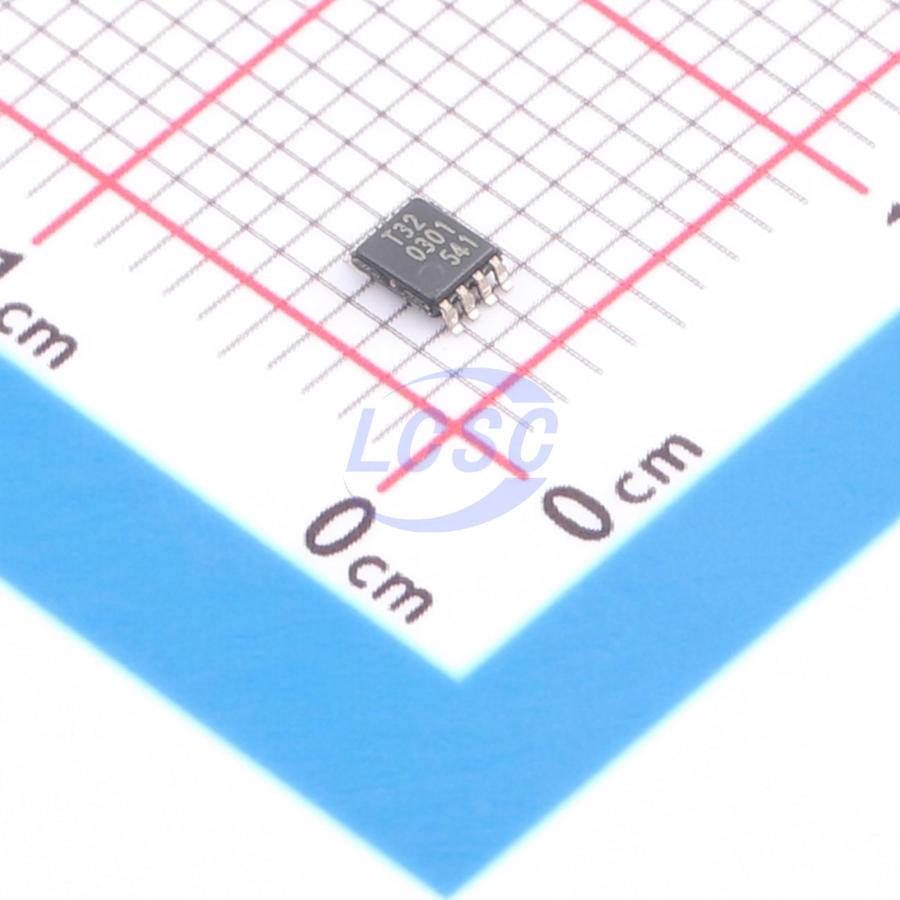

74HCT2G32DC,125
TTL-compatible CMOS 4.5V~5.5V 24ns@4.5V,50pF 1uA VSSOP-8-0.5mm Gates and Inverters RoHS
VSSOP-8-0.5mmROHS3 CompliantActive
Dual 2-input OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT2G32DC,125
- Store part #
- C547570
- Package / case
- VSSOP-8-0.5mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C547570
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.93 | ₹89.65 |
| 50+ | ₹14.08 | ₹704.00 |
| 150+ | ₹12.16 | ₹1,824.00 |
| 500+ | ₹10.72 | ₹5,360.00 |
| 3,000+ | ₹9.55 | ₹28,650.00 |
| 6,000+ | ₹8.98 | ₹53,880.00 |
5 × ₹17.93
₹89.65
excl. GST
₹105.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HCT2G32DC,125
₹89.65 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 24ns@4.5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;4.18V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The 74HC2G32; 74HCT2G32 is a dual 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G32: CMOS level For 74HCT2G32: TTL level
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standard: JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HCT2G32DC-Q100H#C547571Nexperia · VSSOP-8-0.5mm | Nexperia | VSSOP-8-0.5mm | On request | Price on request | Quote | |
| 74AHCT2G32DC-Q100125#C4469158Nexperia · VSSOP-8 | Nexperia | VSSOP-8 | On request | Price on request | Quote | |
| 74AHCT2G32DC#C4472127Nexperia · VSSOP-8 | Nexperia | VSSOP-8 | On request | Price on request | Quote | |
| 74AHCT2G32DC,125#C554640Nexperia · VSSOP-8-0.5mm | Nexperia | VSSOP-8-0.5mm | On request | Price on request | Quote | |
| 74AHCT2G32DC-Q100H#C554641Nexperia · VSSOP-8-0.5mm | Nexperia | VSSOP-8-0.5mm | On request | Price on request | Quote | |
