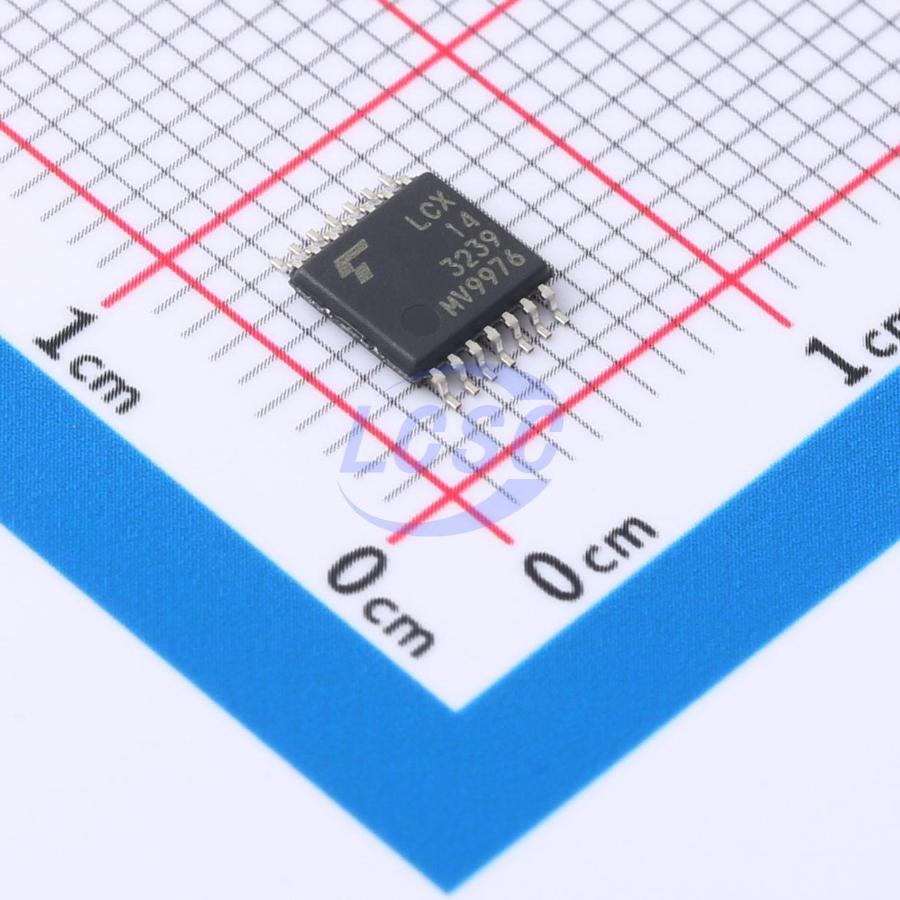

74LCX14FT(AJ)
Schmitt trigger 1.65V~3.6V 6.5ns@3.3V,50pF 40uA 6 TSSOP14B Gates and Inverters RoHS
TSSOP14BROHS CompliantActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74LCX14FT(AJ)
- Store part #
- C7421264
- Package / case
- TSSOP14B
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C7421264
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.29 | ₹191.45 |
| 50+ | ₹30.61 | ₹1,530.50 |
| 150+ | ₹27.32 | ₹4,098.00 |
| 500+ | ₹23.21 | ₹11,605.00 |
| 2,500+ | ₹21.38 | ₹53,450.00 |
| 5,000+ | ₹20.28 | ₹1,01,400.00 |
5 × ₹38.29
₹191.45
excl. GST
₹225.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LCX14FT(AJ)
₹191.45 for 5 + GST
Specifications
- Logic Family
- 74LCX
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~3.6V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 6.5ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.123 g
Overview
The 74LCX14FT is a high-performance CMOS schmitt inverter. Designed for use in 3.3V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5-V supply environment for inputs. Pin configuration and function are the same as the 74LCX04FT but the inputs have hysteresis and with Schmitt trigger function, the 74LCX14FT can be used as a line receivers which will receive slow input signals. All inputs are equipped with protection circuits against static discharge.
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr)= -40 to 125 ℃
- Low-voltage operation: V(CC)= 1.65 to 3.6 V
- High-speed operation: t(pd)= 7.5 ns (max) (V(CC)= 3.3 ± 0.3 V)
- Output current: |IoH|/IoL = 24 mA (min) (V(CC)= 3.0 V)
- Power-down protection provided on all inputs and outputs
- Pin and function compatible with the 74 series (74LVC/ALVC etc.) 14 type
