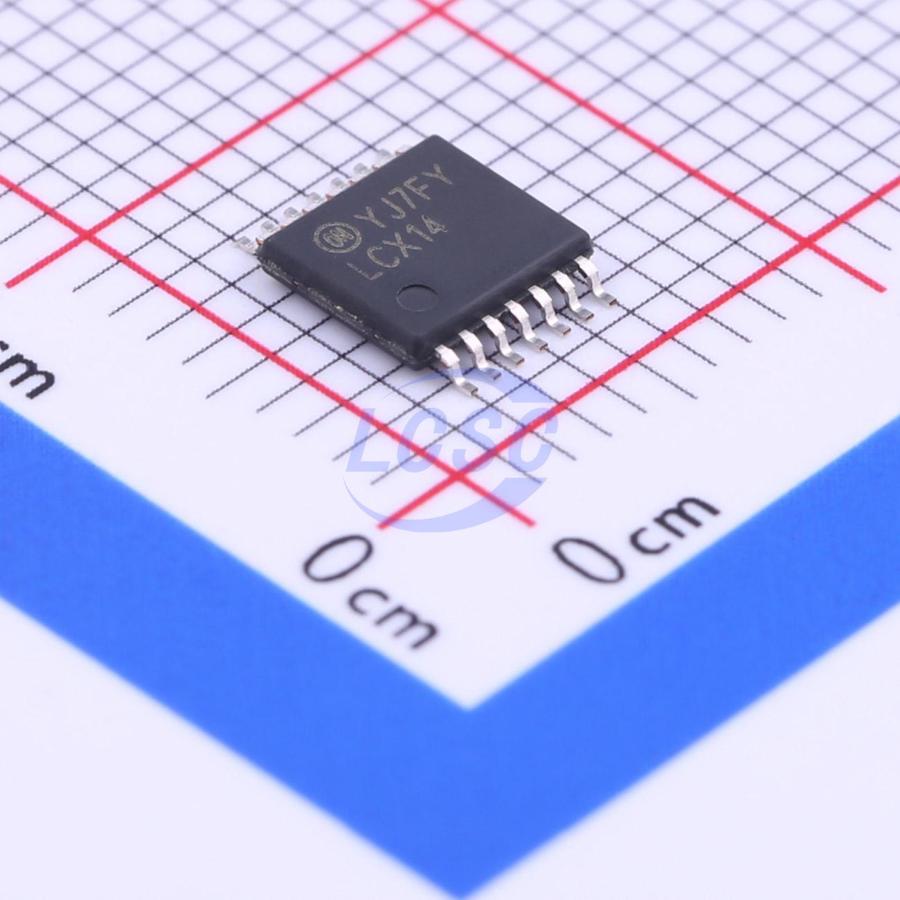

74LCX14MTCX

Key features

• The LCX14 contains six inverter gates each with a Schmitt trigger input. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters.
• The LCX14 has hysteresis between the positive-going and negative-going input thresholds (typically 1.0V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
• The inputs tolerate voltages up to 7V allowing the interface of 5V, 3V and 2.5V systems.
• The 74LCX14 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
• 5V tolerant inputs
• 2.3V - 3.6V VCC specifications provided
• 6.5 ns tPD max (VCC = 3.3V), 10 μA ICC max
• Power down high impedance inputs and outputs
• ±24 mA output drive (VCC = 3.0V)
• Implements patented noise/EMI reduction circuitry
• Latch-up performance exceeds JEDEC 78 conditions
• ESD performance: Machine model > 200V, Human model > 2000V
• Leadless Pb-Free DQFN package
