JSMSEMI

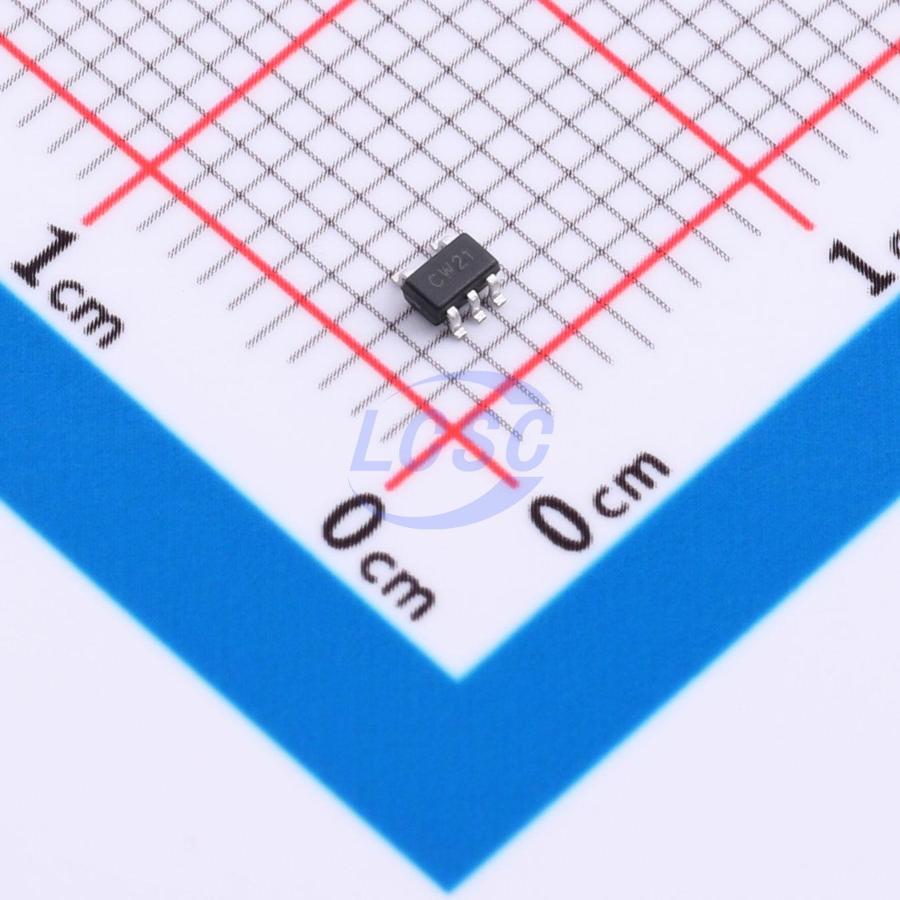

74LV1T34GWH-JSM

1 1 TSSOP-5 Translators, Level Shifters RoHS

TSSOP-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LV1T34GWH-JSM
Store part #: C53114278
Package / case: TSSOP-5
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,870 in stock

#C53114278

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
5+	₹12.21	₹61.05
50+	₹9.74	₹487.00
150+	₹8.49	₹1,273.50
500+	₹7.55	₹3,775.00
3,000+	₹6.81	₹20,430.00
6,000+	₹6.44	₹38,640.00

Quantity (min 5, multiples of 5)

5 × ₹12.21

₹61.05

excl. GST

₹72.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LV1T34GWH-JSM

₹61.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Signal: CMOS
Operating Temperature: -40℃~+125℃
Channel Type: Unidirectional
Number of Elements: 1
Voltage - Supply: -;1.6V~5.5V
Number of Circuits: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The 74LV1T34 is a single-channel level-translating buffer. Its low-threshold inputs support 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. In addition, the 5V-tolerant input pin supports level down-translation (output from 3.3V to 2.5V at VCC = 2.5V). Output levels are referenced to the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS levels. The wide VCC range allows generation of output levels required for interfacing with controllers or processors.

Key features

Single-supply voltage translator supporting 1.8V, 2.5V, 3.3V, and 5.0V
Level up-translation: 1.2V to 1.8V at VCC = 1.8V; 1.5V to 2.5V at VCC = 2.5V; 1.8V to 3.3V at VCC = 3.3V; 3.3V to 5.0V at VCC = 5.0V
Level down-translation: 3.3V to 1.8V at VCC = 1.8V; 3.3V to 2.5V at VCC = 2.5V; 5.0V to 3.3V at VCC = 3.3V
5V-tolerant inputs
Operating temperature range: -40℃ ~ +125℃
Package: TSSOP-5
