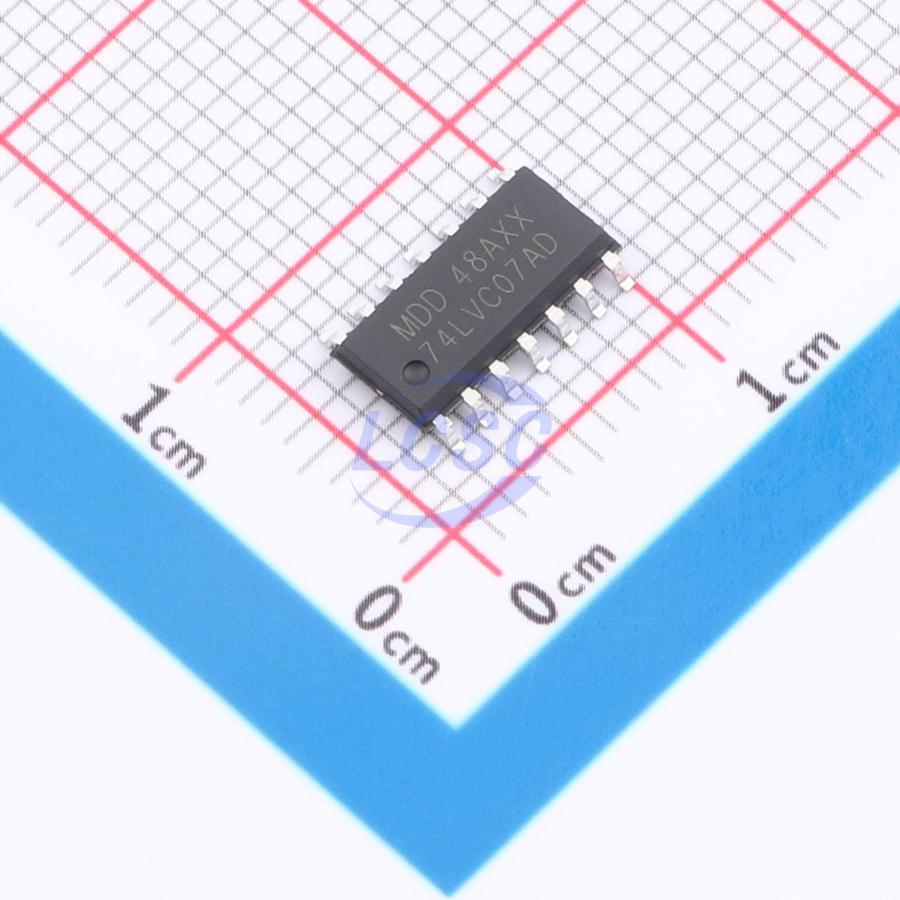

74LVC07AD
SOP-14 Translators, Level Shifters
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC07AD
- Store part #
- C53552915
- Package / case
- SOP-14
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,965 in stock
#C53552915
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.53 | ₹87.65 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹11.96 | ₹1,794.00 |
| 500+ | ₹10.57 | ₹5,285.00 |
| 2,500+ | ₹9.46 | ₹23,650.00 |
| 5,000+ | ₹8.90 | ₹44,500.00 |
5 × ₹17.53
₹87.65
excl. GST
₹103.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC07AD
₹87.65 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.347 g
Overview
The 74LVC07A is a hex buffer with open-drain outputs. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The device is fully specified for partial-power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuitry disables the outputs, preventing damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.2V ~ 5.5V
- Input overvoltage tolerance up to 5.5V
- CMOS low power consumption
- I<sub>OFF</sub> circuitry for partial power-down mode operation
- Latch-up performance exceeds 250mA
- Direct TTL-level interface compatible
- JEDEC standard compliant:
- JESD8-7 (1.65V ~ 1.95V)
- JESD8-5 (2.3V ~ 2.7V)
- JESD8C (2.7V ~ 3.6V)
- JESD36 (4.5V ~ 5.5V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
