74LVC08APW,118
1.2V~3.6V 4.1ns@3.3V,50pF 40uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive

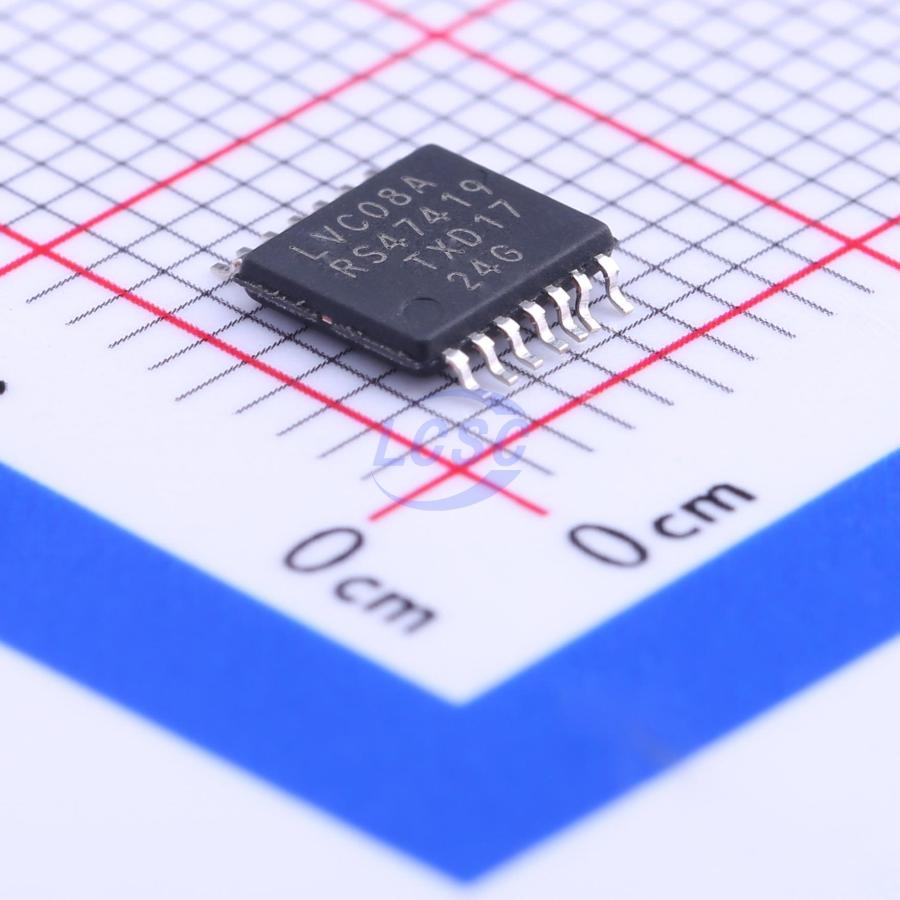

Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC08APW,118
- Store part #
- C6053
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,380 in stock
#C6053
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.99 | ₹99.95 |
| 50+ | ₹16.00 | ₹800.00 |
| 150+ | ₹13.98 | ₹2,097.00 |
| 500+ | ₹12.49 | ₹6,245.00 |
| 2,500+ | ₹11.29 | ₹28,225.00 |
| 5,000+ | ₹10.69 | ₹53,450.00 |
5 × ₹19.99
₹99.95
excl. GST
₹117.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC08APW,118
₹99.95 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- Logic Family
- 74LVC Series
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 200mV;600mV;650mV;800mV
- Propagation Delay
- 4.1ns@3.3V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 120mV~800mV
- Input Logic Level - High
- 1.08V~2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.8V;2.2V;2.4V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74LVC08A is a quad 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Applications
- Translator for mixed 3.3V and 5V applications
Key features
- Overvoltage tolerant inputs to 5.5 V
- Wide supply voltage range from 1.2 V to 3.6 V
- CMOS low power consumption
- Direct interface with TTL levels
- Complies with JEDEC standard:
- JESD8-7A (1.65 V to 1.95 V)
- JESD8-5A (2.3 V to 2.7 V)
- JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
