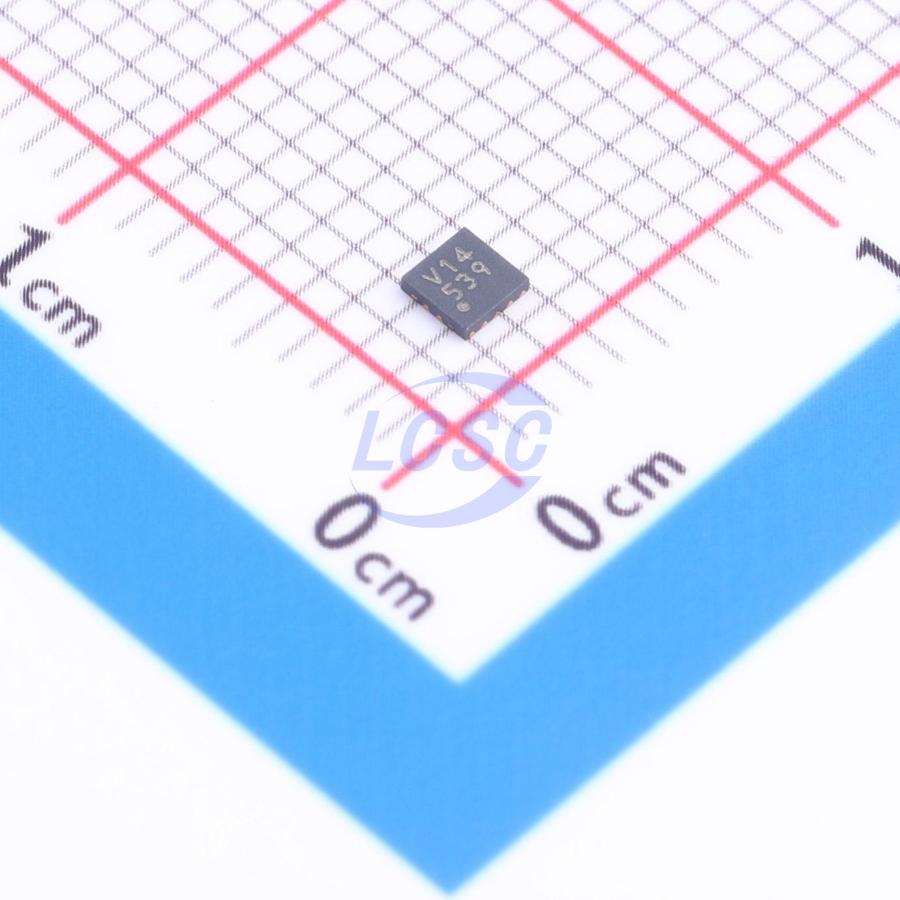

74LVC14ABZZ

Schmitt trigger 1.65V~3.6V 8ns@3.3V,50pF 40uA 6 DHXQFN-14(2x2) Gates and Inverters RoHS

DHXQFN-14(2x2)ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: 74LVC14ABZZ
Store part #: C3272285
Package / case: DHXQFN-14(2x2)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C3272285

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹48.59	₹242.95
50+	₹37.96	₹1,898.00
150+	₹33.39	₹5,008.50
500+	₹27.70	₹13,850.00
3,000+	₹25.18	₹75,540.00
6,000+	₹23.66	₹1,41,960.00

Quantity (min 5, multiples of 5)

5 × ₹48.59

₹242.95

excl. GST

₹286.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC14ABZZ

₹242.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~3.6V
Output Logic Level - Low: 300mV;650mV;800mV;600mV
Propagation Delay: 8ns@3.3V,50pF
Features: Noise suppression function
Input Logic Level - High: 1V~2V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 750mV~1.5V
Output Logic Level - High: 1.05V;1.65V;2.05V;2.25V;2V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 24mA
Number of Channels: 6
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.051 g

Overview

The 74LVC14A is a hex inverter with Schmitt-trigger inputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.

Applications

Wave and pulse shapers for highly noisy environments
Astable multivibrators
Monostable multivibrators

Key features

Wide supply voltage range from 1.2 V to 3.6 V
Overvoltage tolerant inputs to 5.5 V
CMOS low-power consumption
Direct interface with TTL levels
Unlimited input rise and fall times
Complies with JEDEC standard JESD8-C/JESD36 (2.7 V to 3.6 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
