NexperiaDatasheet (PDF)

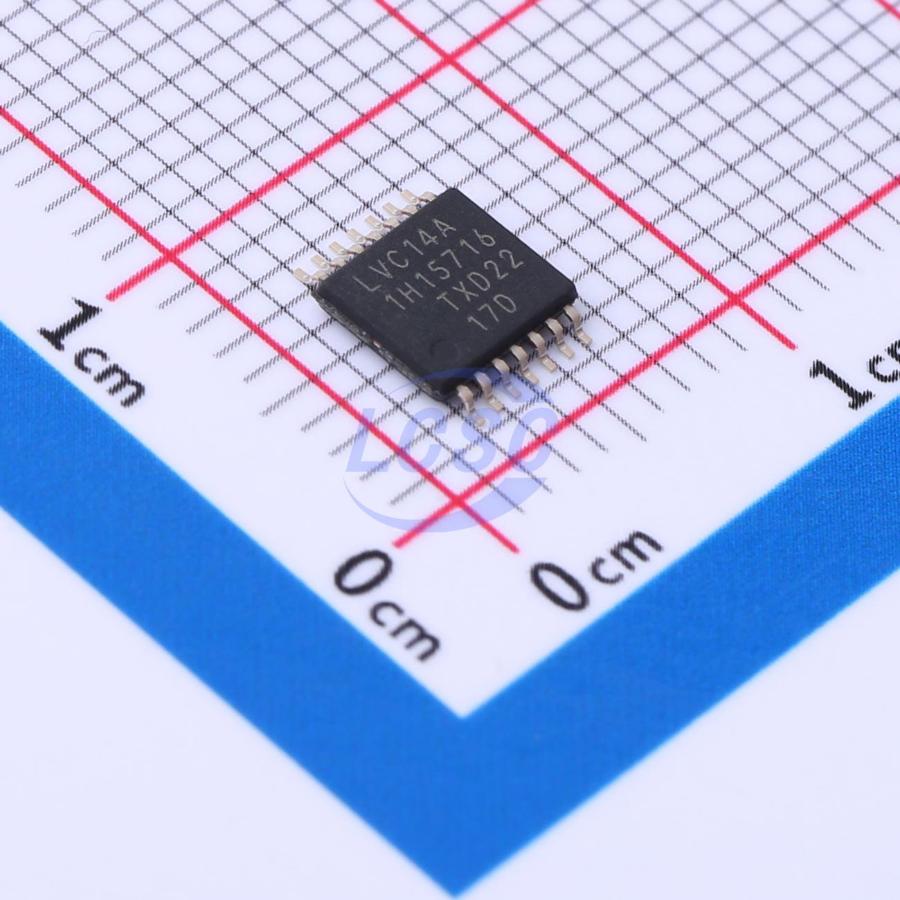

74LVC14APW-Q100J
Schmitt trigger 1.2V~3.6V 6.4ns@3.3V,50pF 40uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex inverting Schmitt trigger with 5 V tolerant input
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC14APW-Q100J
- Store part #
- C548122
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,385 in stock
#C548122
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.15 | ₹145.75 |
| 50+ | ₹23.01 | ₹1,150.50 |
| 150+ | ₹20.37 | ₹3,055.50 |
| 500+ | ₹16.37 | ₹8,185.00 |
| 2,500+ | ₹14.90 | ₹37,250.00 |
| 5,000+ | ₹14.02 | ₹70,100.00 |
5 × ₹29.15
₹145.75
excl. GST
₹171.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC14APW-Q100J
₹145.75 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.2V~3.6V
- Output Logic Level - Low
- 300mV;650mV;800mV;600mV
- Propagation Delay
- 6.4ns@3.3V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 1V~2V
- Input Logic Level - Low
- 120mV~800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.05V;1.65V;2.05V;2.25V;2V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- Waveform and pulse shapers in high-noise environments
- Astable multivibrators
- Monostable multivibrators
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC14APW,118#C6066Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 2,865 | ₹31.25 · 2,865 in stock | View |
 | 74LVC04APW,118#C282342Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | Price on request | Quote |
| 74LVC04APW-Q100J#C548051Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | Price on request | Quote | |
