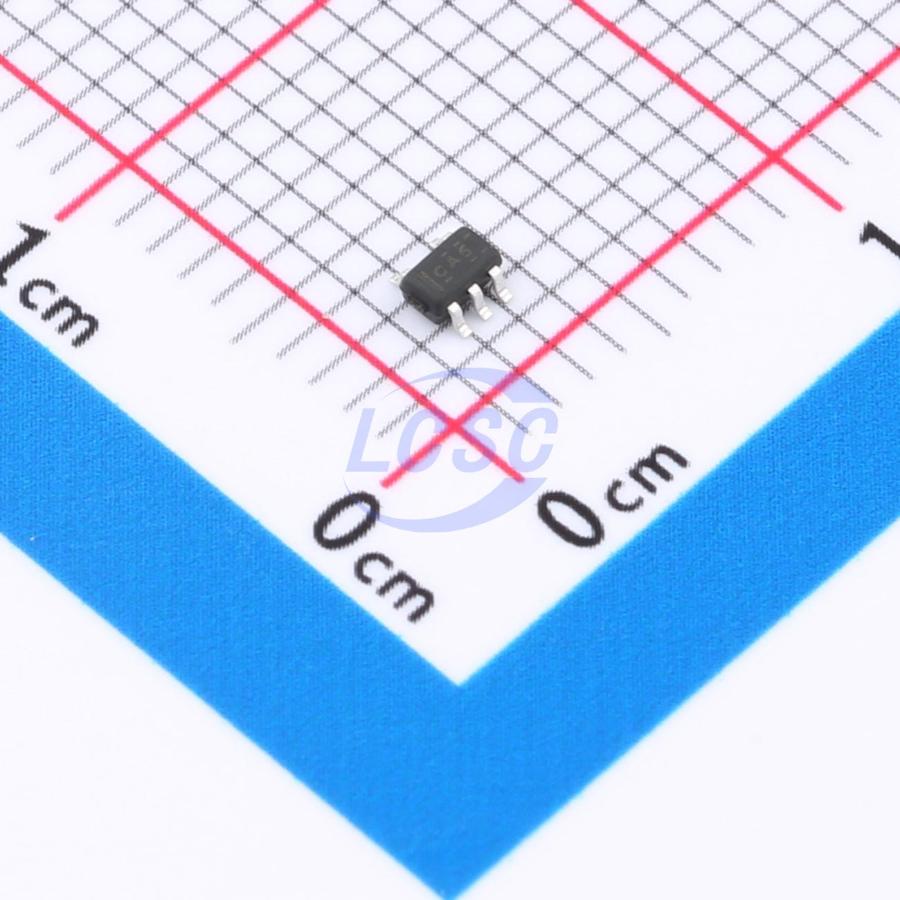

74LVC1G00CT05ARCQ

NAND Gate IC 1 Channel SC-70-5

SC-70-5RoHSActive

Single 2-Input Positive-NAND Gate

Manufacturer: GR
Manufacturer part #: 74LVC1G00CT05ARCQ
Store part #: C48391418
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,000 in stock

#C48391418

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
20+	₹4.33	₹86.60
200+	₹3.39	₹678.00
600+	₹2.87	₹1,722.00
3,000+	₹2.57	₹7,710.00
9,000+	₹2.29	₹20,610.00
21,000+	₹2.14	₹44,940.00

Quantity (min 20, multiples of 20)

20 × ₹4.33

₹86.60

excl. GST

₹102.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G00CT05ARCQ

₹86.60 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 90mV;100mV;150mV;250mV
Input Logic Level - High: 1.7V
Input Logic Level - Low: 700mV;800mV
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Operating Temperature: 0℃~+70℃
Output Logic Level - High: 1.47V;2.15V;2.8V;2.7V;4.2V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.036 g

Overview

This single 2-input NAND gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G00 performs the Boolean function Y = A·B (overline) or Y = Ā + B̄ in positive logic. This CMOS device delivers high output drive capability across a wide VCC operating range while maintaining low quiescent power consumption.
