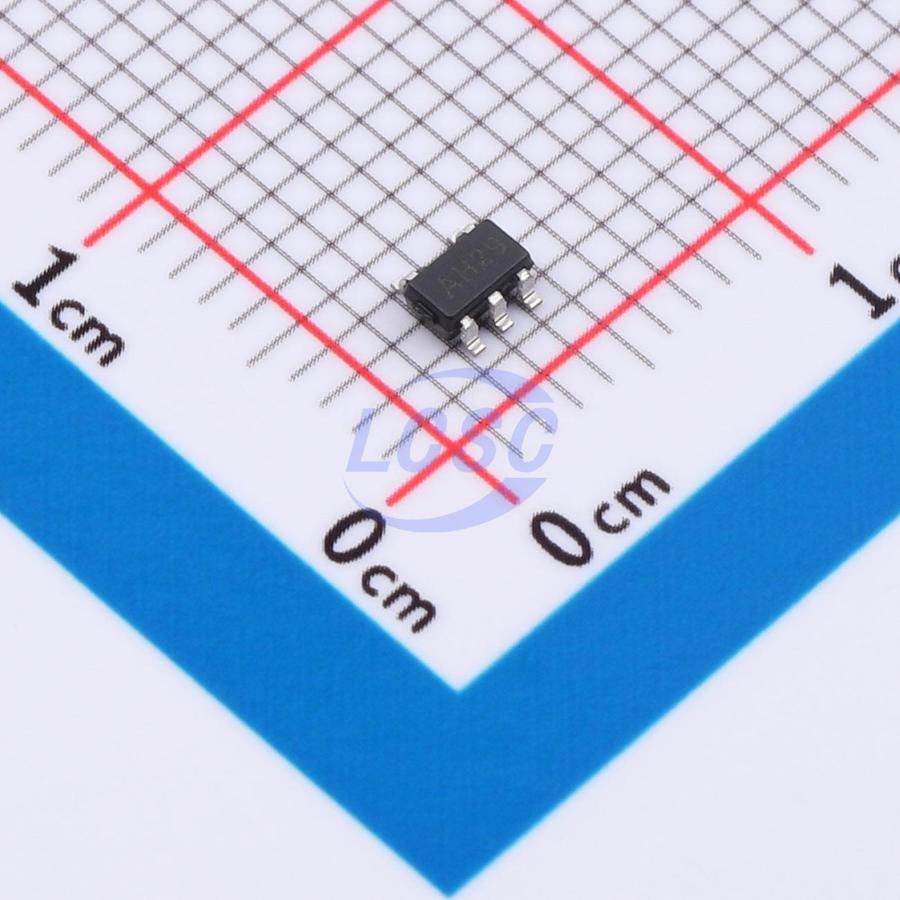

JSMSEMI

74LVC1G00GV-JSM

4uA 1.65V~5.5V 13.5ns@4.5V,50pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74LVC1G00GV-JSM
Store part #: C53114295
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,840 in stock

#C53114295

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
20+	₹4.90	₹98.00
200+	₹3.90	₹780.00
600+	₹3.40	₹2,040.00
3,000+	₹3.03	₹9,090.00
9,000+	₹2.73	₹24,570.00
21,000+	₹2.58	₹54,180.00

Quantity (min 20, multiples of 20)

20 × ₹4.90

₹98.00

excl. GST

₹115.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G00GV-JSM

₹98.00 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Logic Family: 74LVC
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 4uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 13.5ns@4.5V,50pF
Output Logic Level - Low: 800mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.043 g

Overview

The 74LVC1G00 device provides a single 2-input NAND gate function. Its inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V voltage environments.

Key features

Wide supply voltage range: 1.65V ~ 5.5V, output drive capability ±24mA (VCC = 3.0V)
CMOS low power consumption
Inputs accept voltages up to 5V
Operating temperature range: -40°C ~ +125°C
Package: SOT23-5/SOT353/XSON6
