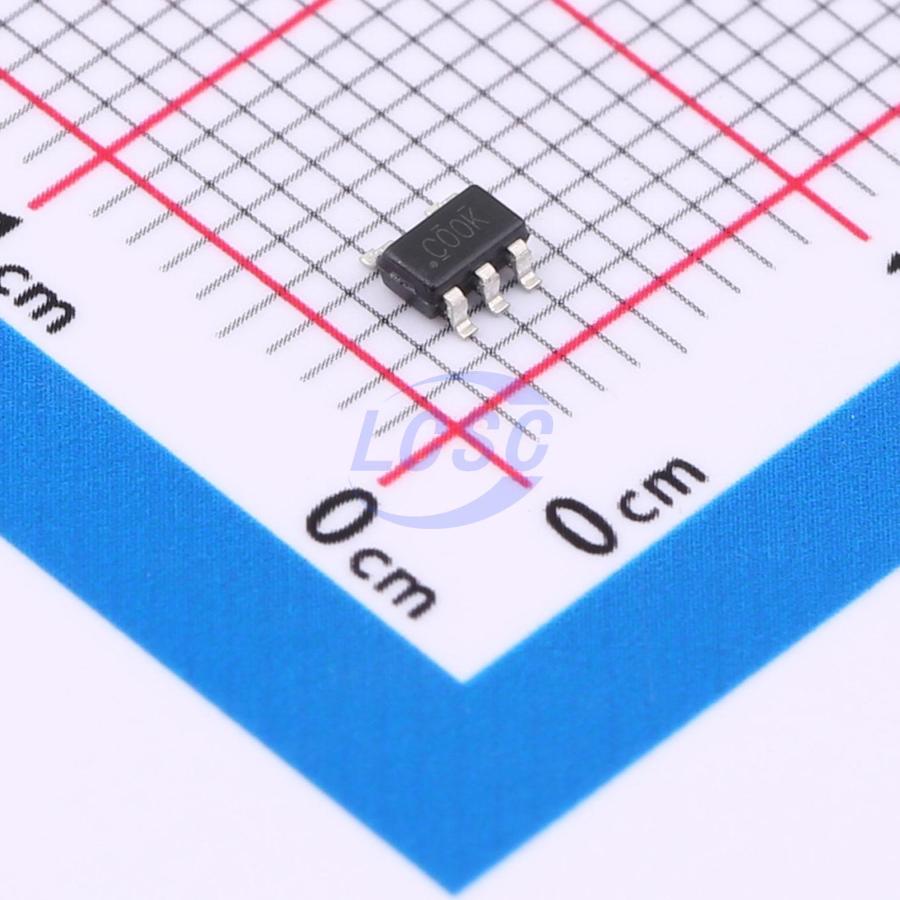

74LVC1G00LT05ARCQ

NAND Gate IC 1 Channel SOT-23-5

SOT-23-5RoHSActive

Single 2-Input Positive-NAND Gate

Manufacturer: GR
Manufacturer part #: 74LVC1G00LT05ARCQ
Store part #: C46527064
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,140 in stock

#C46527064

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
20+	₹5.64	₹112.80
200+	₹4.46	₹892.00
600+	₹3.81	₹2,286.00
3,000+	₹3.41	₹10,230.00
9,000+	₹3.08	₹27,720.00
21,000+	₹2.90	₹60,900.00

Quantity (min 20, multiples of 20)

20 × ₹5.64

₹112.80

excl. GST

₹133.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G00LT05ARCQ

₹112.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Live insertion protection;Local shutdown mode;Rear drive protection
Input Logic Level - High: 1.7V
Operating Temperature: 0℃~+70℃
Input Logic Level - Low: 700mV;800mV
Logic Family: 74LVC
Output Logic Level - High: 4.2V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Output Logic Level - Low: 250mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.068 g

Overview

This single 2-input NAND gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G00 performs the Boolean function Y = A·B (overline) or Y = Ā + B̄ in positive logic. This CMOS device delivers high output drive capability across a wide VCC operating range while maintaining low quiescent power consumption.
