MDD(Microdiode Semiconductor)Datasheet (PDF)

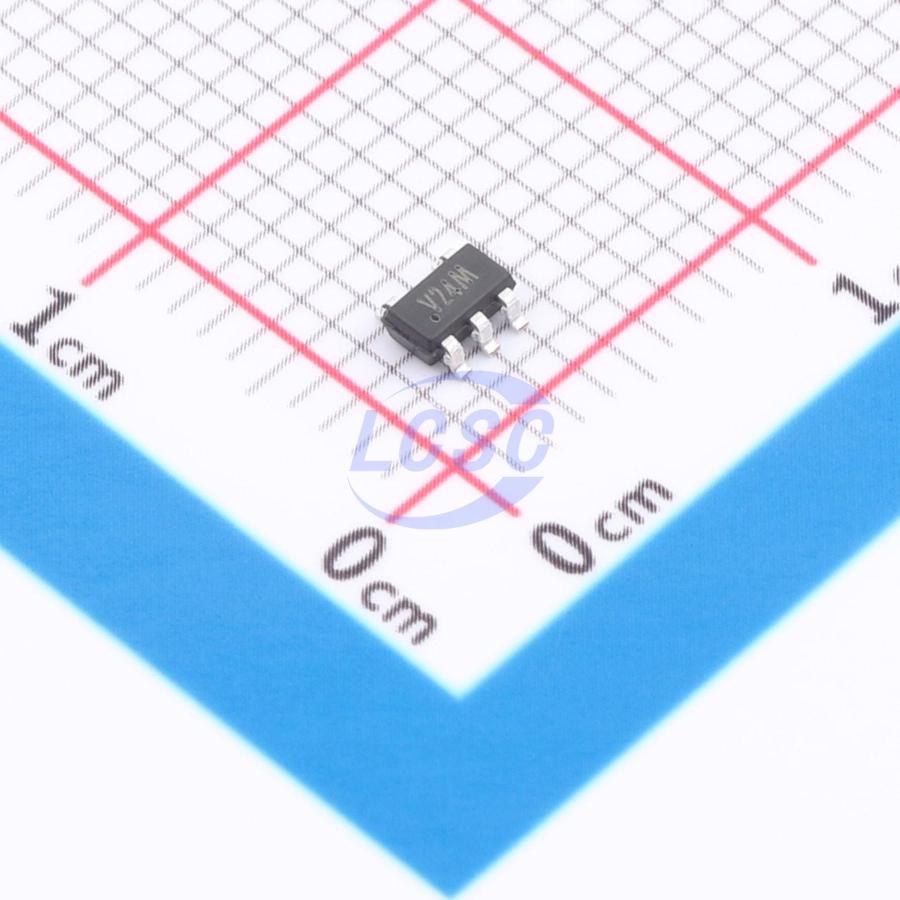

74LVC1G02GV
Schmitt trigger 1.65V~5.5V 2.6ns@5.0V,50pF 4uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G02GV
- Store part #
- C53954308
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C53954308
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.14 | ₹614.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 3,000+ | ₹4.70 | ₹14,100.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.96 | ₹35,640.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G02GV
₹77.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 2.6ns@5.0V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 2;1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.07 g
Overview
The 74LVC1G02 is a single 2-input NOR gate. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The device is fully specified for partial power-down applications using I<sub>OFF</sub>. The I<sub>OFF</sub> circuit disables the output, preventing potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- IOFF circuit for partial power-down mode operation
- ±24mA output drive (VCC = 3.0V)
- Latch-up performance exceeds 100mA
- Direct TTL-level interface compatible
- JEDEC standard compliant:
- JESD8-7 (1.65V to 1.95V)
- JESD8-5 (2.3V to 2.7V)
- JESD8C (2.7V to 3.6V)
- JESD36 (4.5V to 5.5V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V
- MM JESD22-A115C Class C exceeds 550V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
