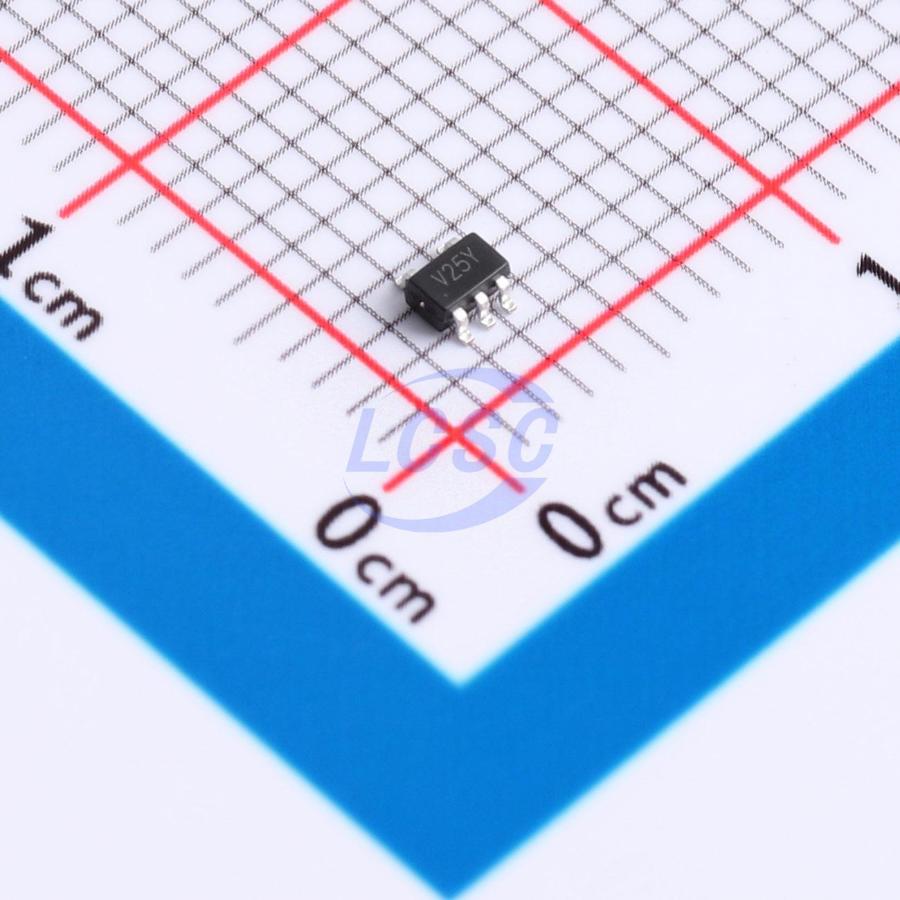

MDD(Microdiode Semiconductor)

74LVC1G02GW

Schmitt trigger 1.65V~5.5V 100nA SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G02GW
Store part #: C52953351
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,920 in stock

#C52953351

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.50	₹95.00
100+	₹7.49	₹749.00
300+	₹6.48	₹1,944.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.12	₹30,720.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹9.50

₹95.00

excl. GST

₹112.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G02GW

₹95.00 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 15.9ns@1.65V,30pF;8.6ns@2.3V,30pF;6ns@3V,50pF;3.6ns@4.5V,50pF
Output Logic Level - Low: 100mV;450mV;600mV;700mV;800mV
Operating Temperature: -40℃~+125℃
Features: Local shutdown mode;Overvoltage-tolerant input
Quiescent Current(Iq): 100nA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.074 g

Overview

The 74LVC1G02 is a single 2-input NOR gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. All inputs include Schmitt-trigger action, enabling the circuit to tolerate slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing potentially destructive backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 1.65V to 5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
CMOS low power consumption
IOFF circuit for partial power-down mode operation
Output drive capability ±24mA (at VCC = 3.0V)
Latch-up performance exceeds 100mA
Direct TTL-level interface compatible
Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
Single 2-input NOR gate
