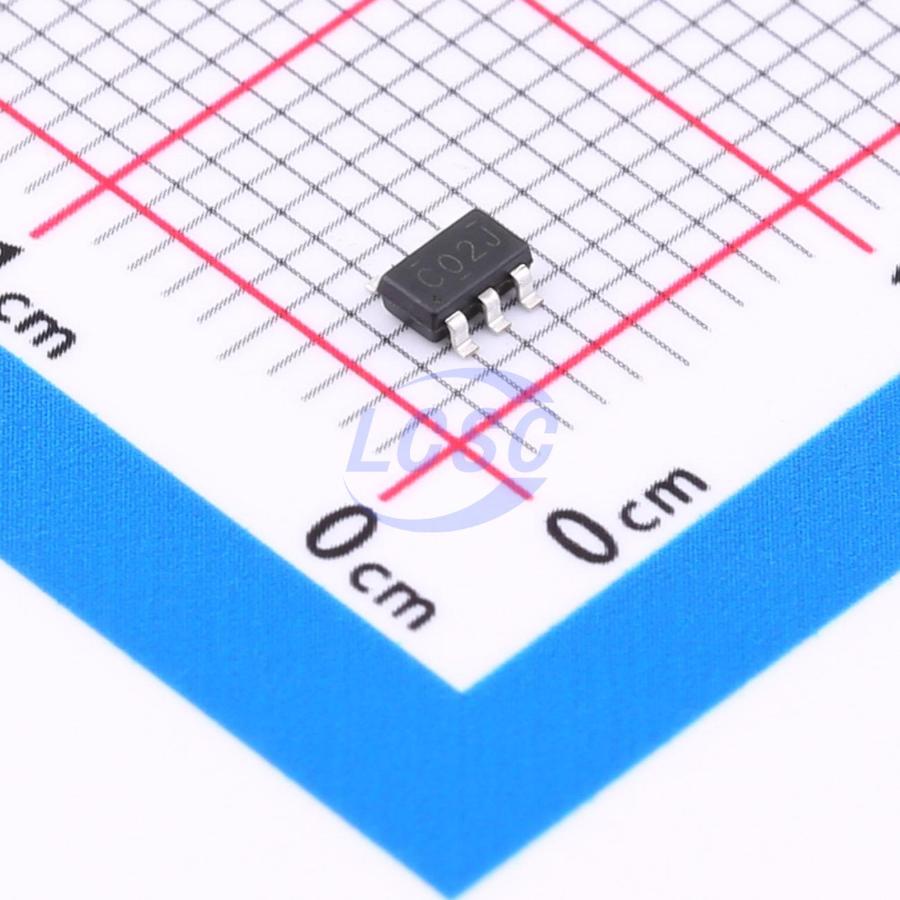

74LVC1G02LT05ARCQ

NOR Gate IC 1 Channel SOT-23-5

SOT-23-5RoHSActive

Single 2-Input Positive-NOR Gate

Manufacturer: GR
Manufacturer part #: 74LVC1G02LT05ARCQ
Store part #: C48391416
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,820 in stock

#C48391416

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹5.00	₹100.00
200+	₹3.96	₹792.00
600+	₹3.44	₹2,064.00
3,000+	₹3.04	₹9,120.00
9,000+	₹2.74	₹24,660.00
21,000+	₹2.58	₹54,180.00

Quantity (min 20, multiples of 20)

20 × ₹5.00

₹100.00

excl. GST

₹118.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G02LT05ARCQ

₹100.00 for 20 + GST

Specifications

Features: Live insertion protection;Local shutdown mode;Rear drive protection
Operating Temperature: 0℃~+70℃
Logic Family: 74LVC
Output Logic Level - High: 1.47V;2.15V;2.8V;2.7V;4.2V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 90mV;100mV;150mV;250mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.052 g

Overview

This single 2-input NOR gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G02 performs the Boolean function Y = NOT(A + B) or Y = NOT A · NOT B in positive logic. This CMOS device features high output drive capability while maintaining low quiescent power consumption across a wide VCC operating range.

Applications

NOR logic function
Basic LED driver

Key features

5V VCC operation supported
Inputs accept up to 5.5V
Down-level translation to VCC
Low power consumption, max Icc of 10μA
±24mA output drive capability at 3.3V
Ioff feature supports hot insertion, partial power-down mode, and back-drive protection
