TDSEMIC

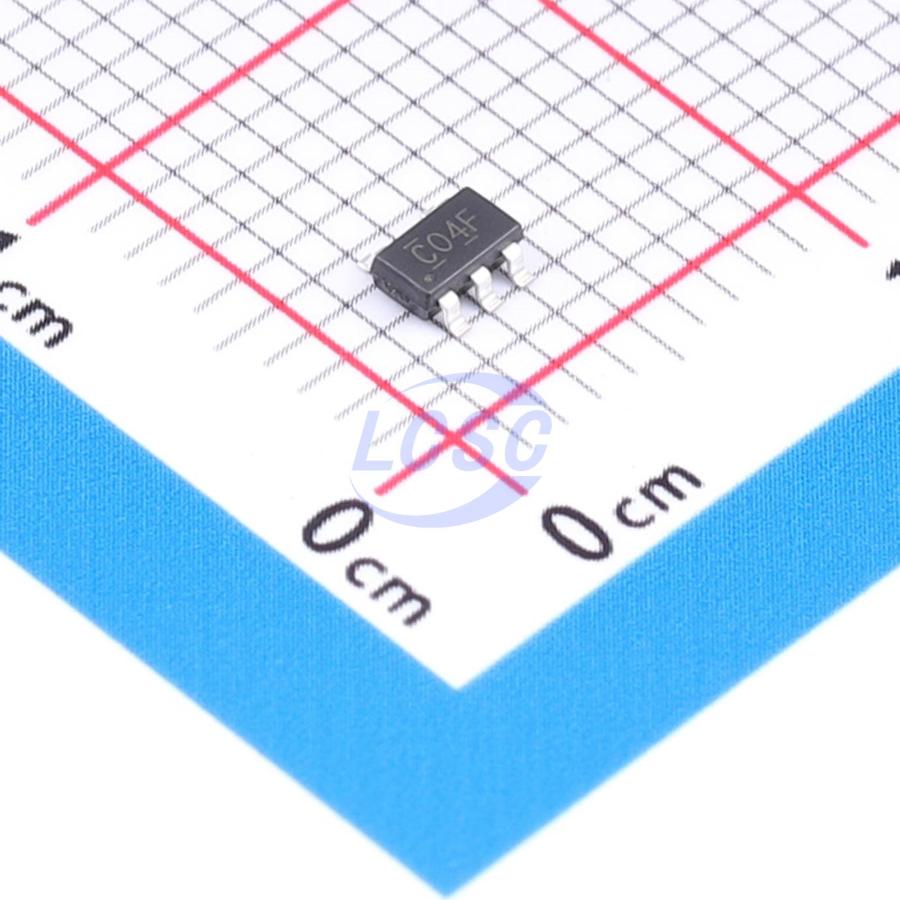

74LVC1G04DBVR-TD

1.65V~5.5V 10uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TDSEMIC
Manufacturer part #: 74LVC1G04DBVR-TD
Store part #: C53463552
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C53463552

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹5.89	₹58.90
100+	₹4.67	₹467.00
300+	₹4.06	₹1,218.00
3,000+	₹3.60	₹10,800.00
6,000+	₹3.24	₹19,440.00
9,000+	₹3.06	₹27,540.00

Quantity (min 10, multiples of 10)

10 × ₹5.89

₹58.90

excl. GST

₹69.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G04DBVR-TD

₹58.90 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;90mV;150mV;250mV
Input Logic Level - High: 1.7V
Operating Temperature: -40℃~+85℃
Input Logic Level - Low: 700mV;800mV
Output Logic Level - High: 1.47V;2.15V;2.8V;2.7V;4.2V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.175 g

Overview

This single inverter gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G04 device implements the Boolean function Y = A. This CMOS device offers high output drive capability across a wide VCC operating range while maintaining low static power consumption.
