HANSCHIP semiconductorDatasheet (PDF)

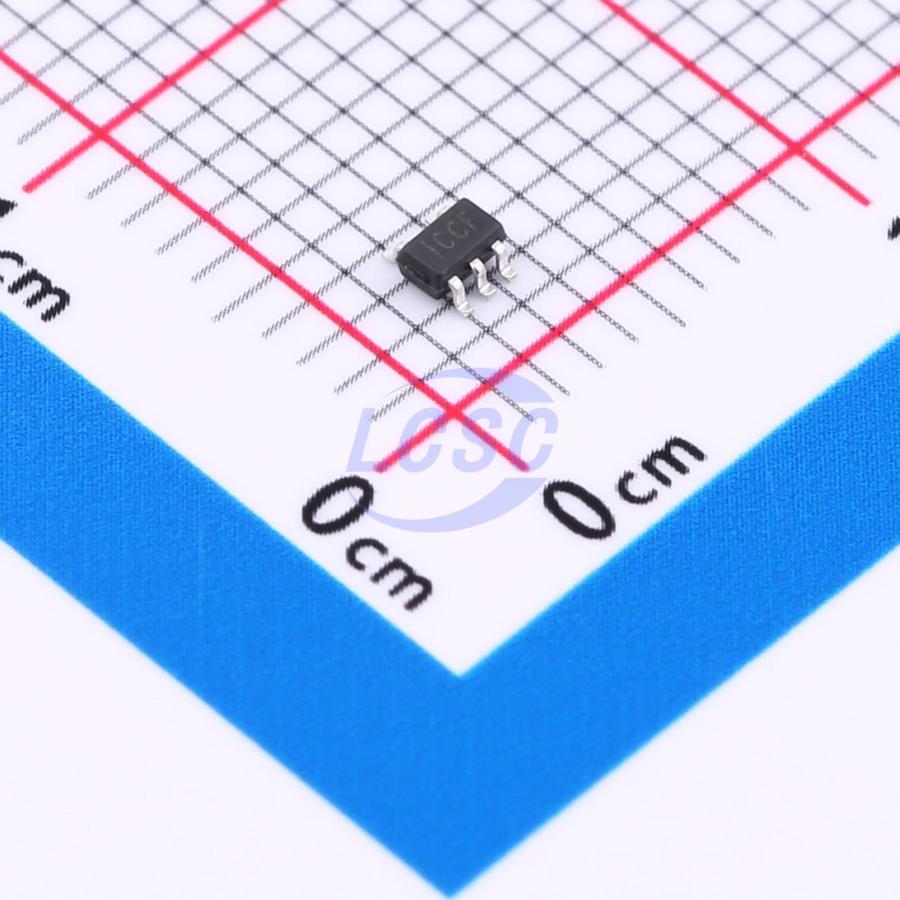

74LVC1G04DCKRG
10uA 1.65V~5.5V 10ns@5V,15pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS CompliantActive
NOT gate integrated circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74LVC1G04DCKRG
- Store part #
- C19723774
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C19723774
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.45 | ₹54.50 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.31 | ₹9,930.00 |
| 6,000+ | ₹2.98 | ₹17,880.00 |
| 9,000+ | ₹2.80 | ₹25,200.00 |
10 × ₹5.45
₹54.50
excl. GST
₹64.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G04DCKRG
₹54.50 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+70℃
- Logic Family
- 74LVC
- Output Logic Level - High
- 1.64V;1.47V;2.15V;2.73V;4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 10ns@5V,15pF
- Output Logic Level - Low
- 10mV;110mV;200mV;350mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The 74LVC1G04 is a single inverter gate IC that implements the logic function Y = NOT A. Designed with advanced CMOS technology, it features low power consumption and high output drive capability, operating over a VCC supply voltage range of 1.65V to 5.5V. Available in multiple compact package options, the 74LVC1G04 is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence applications.
Applications
- Portable audio interfaces
- Digital TV
- Wireless headphones, smartwatches, etc.
- Bluetooth players and home theater systems
- Solid-state drives
- Smart wearable devices
Key features
- Low input current: typical 0.1μA
- Low quiescent current: typical 0.1μA
- High output drive: VCC = 4.5V, greater than 32mA
- Wide operating voltage range: 1.65V ~ 5.5V
- Package: SOT-23-5/SC70-5
