MDD(Microdiode Semiconductor)

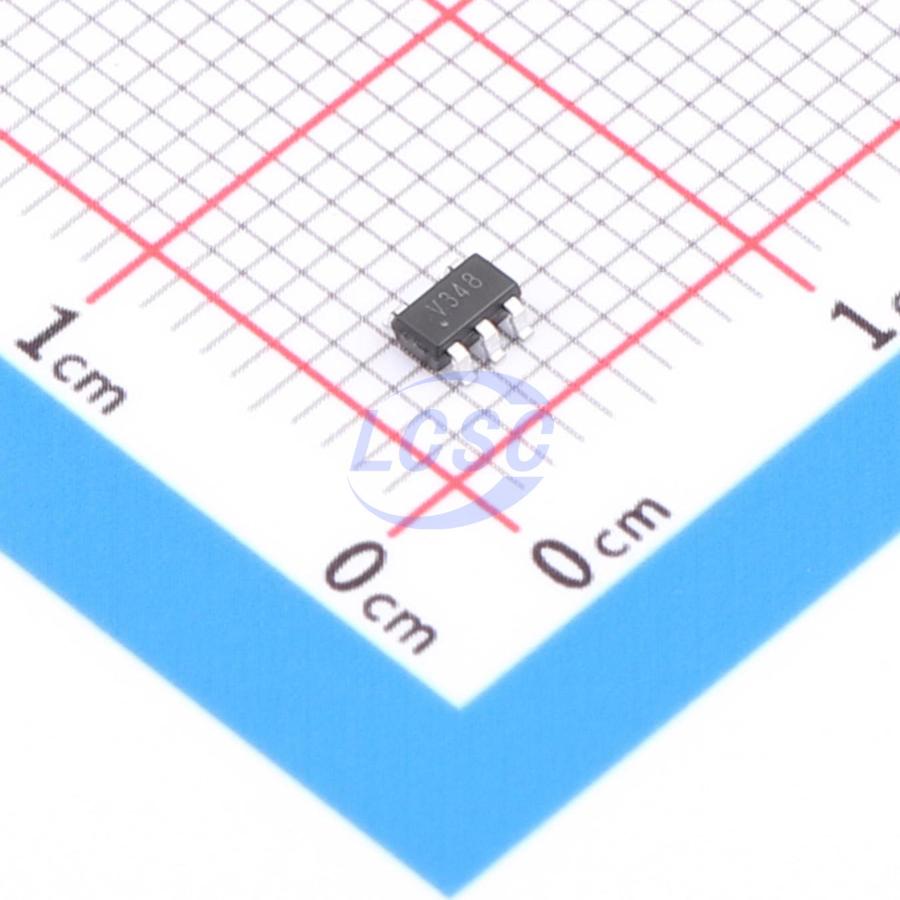

74LVC1G04GV

Schmitt trigger 1.65V~5.5V 2ns@5.5V,50pF 4uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G04GV
Store part #: C53185133
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,060 in stock

#C53185133

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.59	₹95.90
100+	₹7.55	₹755.00
300+	₹6.55	₹1,965.00
3,000+	₹5.78	₹17,340.00
6,000+	₹5.17	₹31,020.00
9,000+	₹4.87	₹43,830.00

Quantity (min 10, multiples of 10)

10 × ₹9.59

₹95.90

excl. GST

₹113.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G04GV

₹95.90 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2ns@5.5V,50pF
Output Logic Level - Low: 100mV;450mV;700mV;300mV;400mV;600mV;550mV;800mV
Input Logic Level - High: 1.7V;2V
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.068 g

Overview

The 74LVC1G04 is a single inverter. Its input can be driven by 3.3 V or 5 V devices. This feature allows the device to be used as a level translator in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuit disables the output, preventing damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
Overvoltage-tolerant inputs up to 5.5 V
High noise immunity
CMOS low power consumption
IOFF circuitry supports partial power-down operation
±24 mA output drive capability (VCC = 3.0 V)
Latch-up performance exceeds 100 mA
Direct interface with TTL levels
JEDEC compliant: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8C (2.7 V ~ 3.6 V), JESD36 (4.5 V ~ 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
Multiple package options
