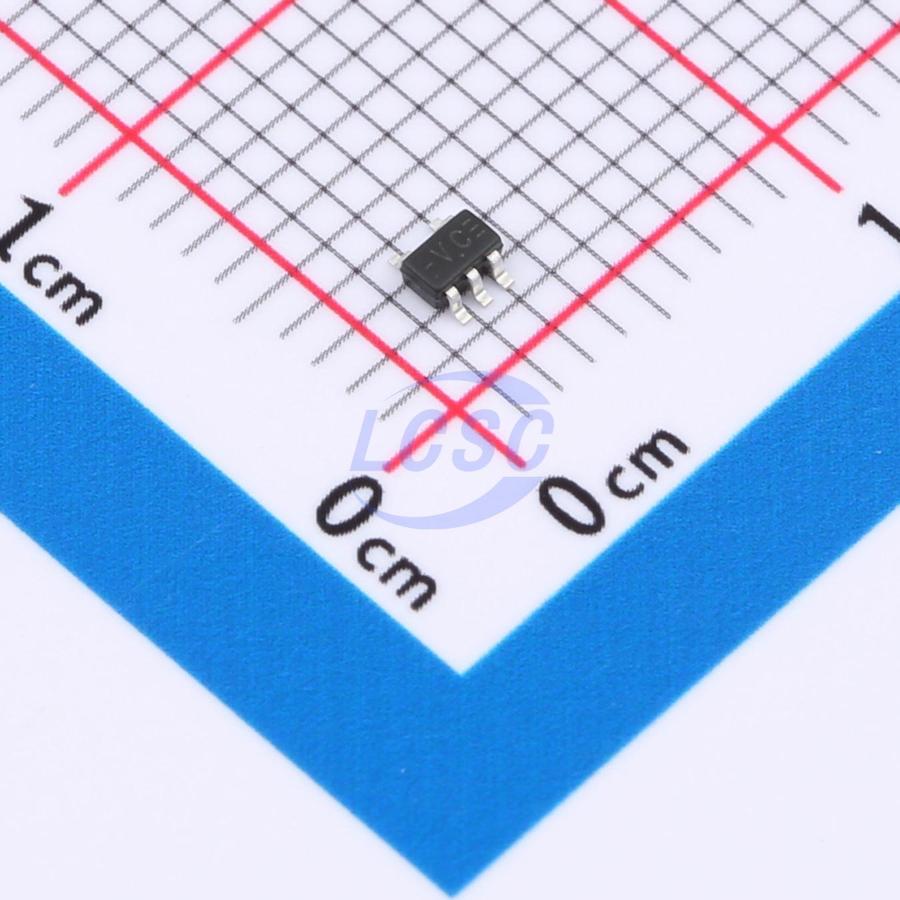

74LVC1G04GW
SOT-353 Gates and Inverters
SOT-353RoHSActive
Single Inverter Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G04GW
- Store part #
- C19829650
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,770 in stock
#C19829650
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.70 | ₹77.00 |
| 100+ | ₹6.13 | ₹613.00 |
| 300+ | ₹5.36 | ₹1,608.00 |
| 3,000+ | ₹4.76 | ₹14,280.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.06 | ₹36,540.00 |
10 × ₹7.70
₹77.00
excl. GST
₹90.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G04GW
₹77.00 for 10 + GST
Specifications
- Features
- Power shutdown protection;Power-off protection function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The 74LVC1G04 is a single inverter gate, it provides the function Y = A (overline). This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 1.65~5.5V
- Low power current: I_CC = 10μA (Max), ±24 mA output drive (V_CC = 3.3V)
- High noise immunity
- Power down protection
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G04C5#C42460128TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,810 | ₹7.44 · 2,810 in stock | View |
