JSMSEMIDatasheet (PDF)

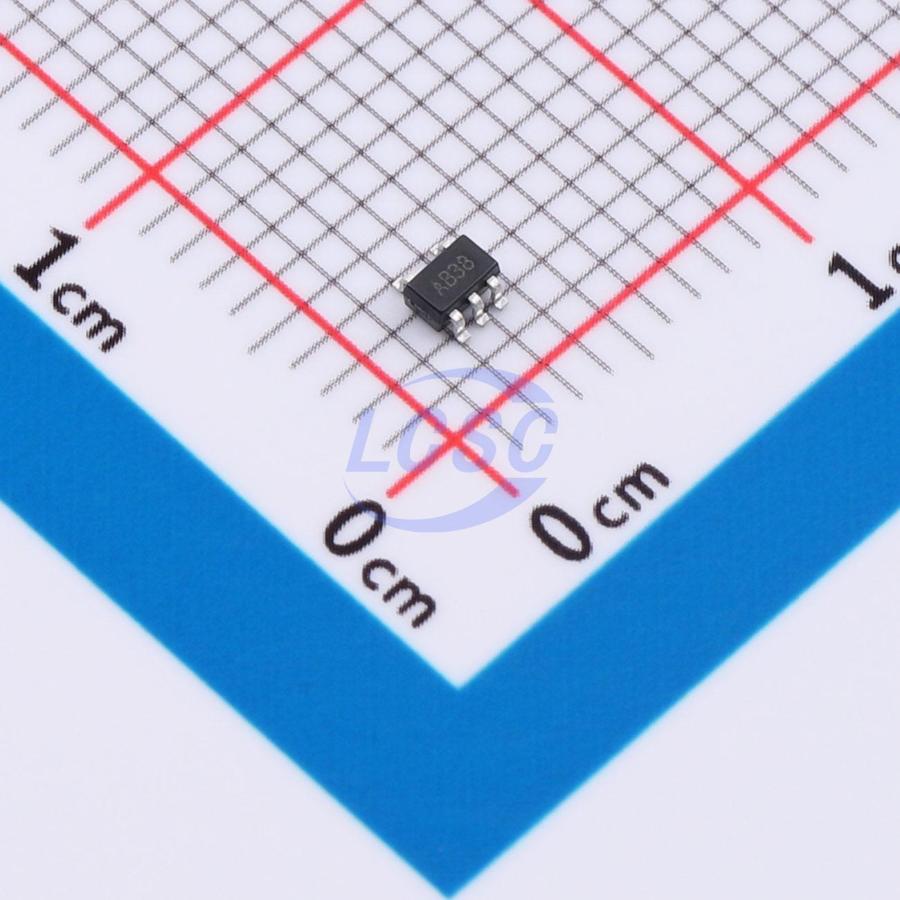

74LVC1G04GW-Q100H-JSM
1.65V~5.5V 9ns@5V,50pF 4uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G04GW-Q100H-JSM
- Store part #
- C53114800
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C53114800
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.87 | ₹58.70 |
| 100+ | ₹4.67 | ₹467.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹5.87
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G04GW-Q100H-JSM
₹58.70 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 9ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
74LVC1G04 is a single inverter. Its input is compatible with 3.3V or 5V logic levels, allowing use in mixed-voltage environments of 3.3V and 5.5V.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- 5V input compatible
- ±24mA output drive capability (at VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40℃ ~ +125℃
- Package types: SOT23-5, SOT353, DFN4, XSON6
