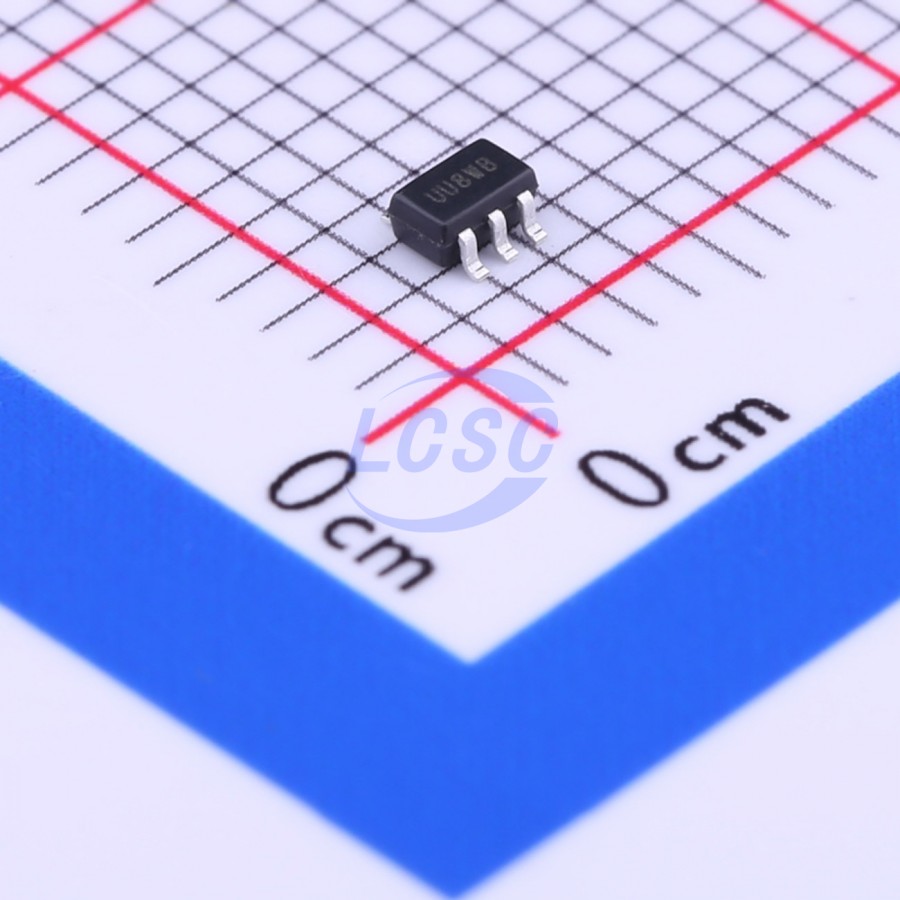

DIODES

74LVC1G04SE-7

TTL兼容CMOS 1.65V~5.5V 5ns@5V,50pF 200uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

Single Inverter

Manufacturer: DIODES
Manufacturer part #: 74LVC1G04SE-7
Store part #: C264081
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,130 in stock

#C264081

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.04	₹80.40
100+	₹6.31	₹631.00
300+	₹5.44	₹1,632.00
3,000+	₹4.79	₹14,370.00
6,000+	₹4.27	₹25,620.00
9,000+	₹4.01	₹36,090.00

Quantity (min 10, multiples of 10)

10 × ₹8.04

₹80.40

excl. GST

₹94.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G04SE-7

₹80.40 for 10 + GST

Specifications

output type: Push-pull
Input Type: TTL兼容CMOS
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 5ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 200uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

The 74LVC1G04 is a single inverter gate with a standard push- pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V, allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power- down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A(overline)

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E- readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box
Cell Phones, Personal Navigation/GPS
MP3 players, Cameras, Video Recorders

Key features

Wide supply Voltage Range from 1.65 to 5.5V
±24mA Output Drive at 3.3V
CMOS Low Power Consumption
IOFF Supports Partial- Power- Down Mode Operation
Inputs Accept Up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 200- V Machine Model (A115)
Exceeds 2000- V Human Body Model (A114)
Exceeds 1000- V Charged Device Model (C101)
Latch- Up Exceeds 100mA per JESD 78, Class 1
Range of Package Options
Direct Interface with TTL Levels
Totally Lead- Free & Fully RoHS Compliant
Halogen- and Antimony- Free. "Green" Device
An automotive- compliant part is available under separate datasheet (74LVC1G04)Q
