JSMSEMIDatasheet (PDF)

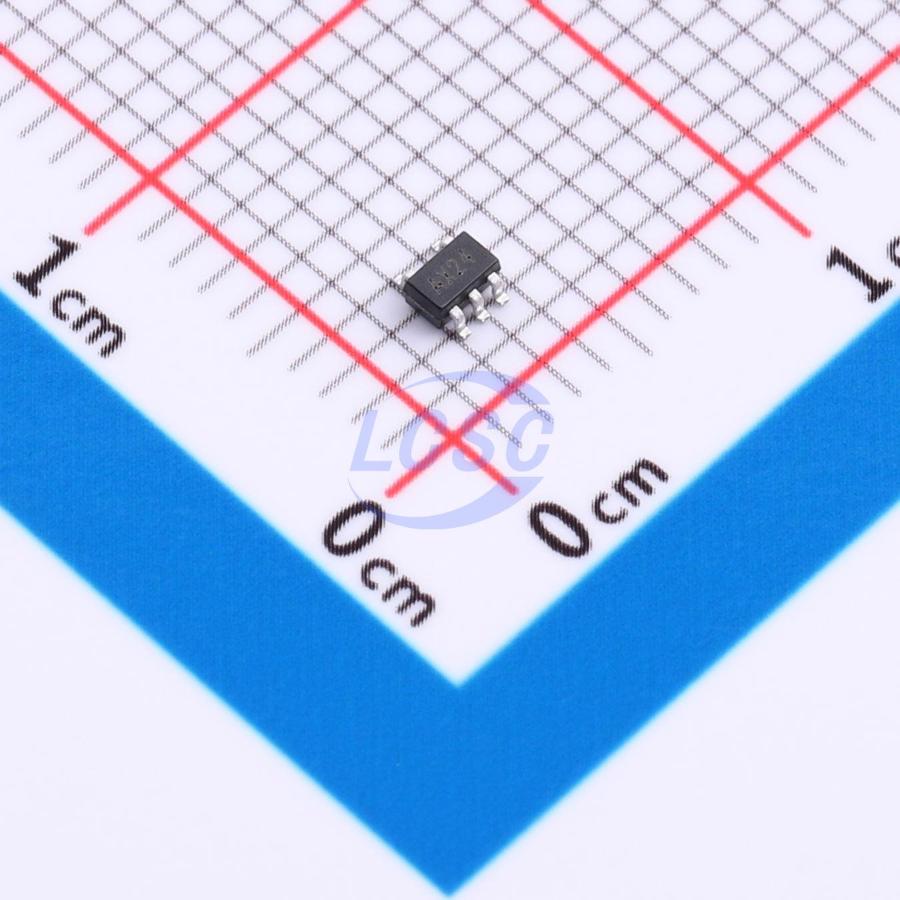

74LVC1G06GW-JSM
1.65V~5.5V 11.9ns@5.5V,50pF 4uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G06GW-JSM
- Store part #
- C53114318
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53114318
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.35 | ₹63.50 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.42 | ₹1,326.00 |
| 3,000+ | ₹3.93 | ₹11,790.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.35
₹63.50
excl. GST
₹74.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G06GW-JSM
₹63.50 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;700mV;450mV;600mV;800mV
- Propagation Delay
- 11.9ns@5.5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The 74LVC1G06 is an inverting buffer. Its input can be driven by 3.3V or 5V devices. These features allow the device to be used in mixed 3.3V and 5V environments. The device output is open-drain, which can be connected with other open-drain outputs to realize active-LOW wired-OR or active-HIGH wired-AND functions. This product is not designed or intended for use in automotive or medical equipment or systems unless the specific product is specially designated for such use. Any such undesignated use is at the buyer's risk.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- ±24mA output drive capability (at VCC = 3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Operating temperature range: -40℃ to +125℃
- Package options: SOT23-5/SOT353/XSON6
