TDSEMICDatasheet (PDF)

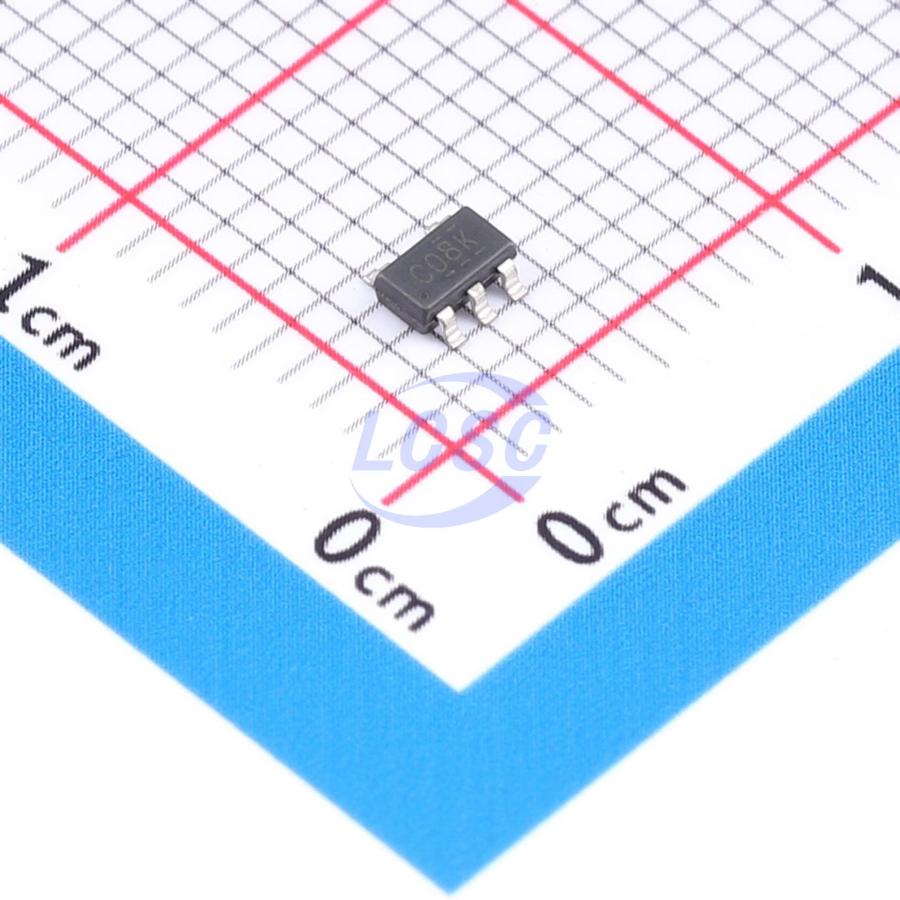

74LVC1G08DBVR-TD
1.65V~5.5V 5.2ns@3.3V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74LVC1G08DBVR-TD
- Store part #
- C53463554
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53463554
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.11 | ₹61.10 |
| 100+ | ₹4.84 | ₹484.00 |
| 300+ | ₹4.21 | ₹1,263.00 |
| 3,000+ | ₹3.74 | ₹11,220.00 |
| 6,000+ | ₹3.36 | ₹20,160.00 |
| 9,000+ | ₹3.16 | ₹28,440.00 |
10 × ₹6.11
₹61.10
excl. GST
₹72.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08DBVR-TD
₹61.10 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Propagation Delay
- 5.2ns@3.3V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;2.4V;3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- -8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
This single 2-input AND gate is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G08 device performs the Boolean function Y = A · B or Y = A̅ + B̅ in positive logic. This CMOS device maintains low quiescent power consumption while providing high output drive capability across a wide VCC operating range.
Key features
- 5V VCC operating voltage
- Input accepts up to 5.5V
- Down-translation to VCC supported
- Low power consumption, max ICC of 10μA
- Output drive current ±24mA at 3.3V
- Ioff supports hot insertion, partial power-down mode, and back-drive protection
