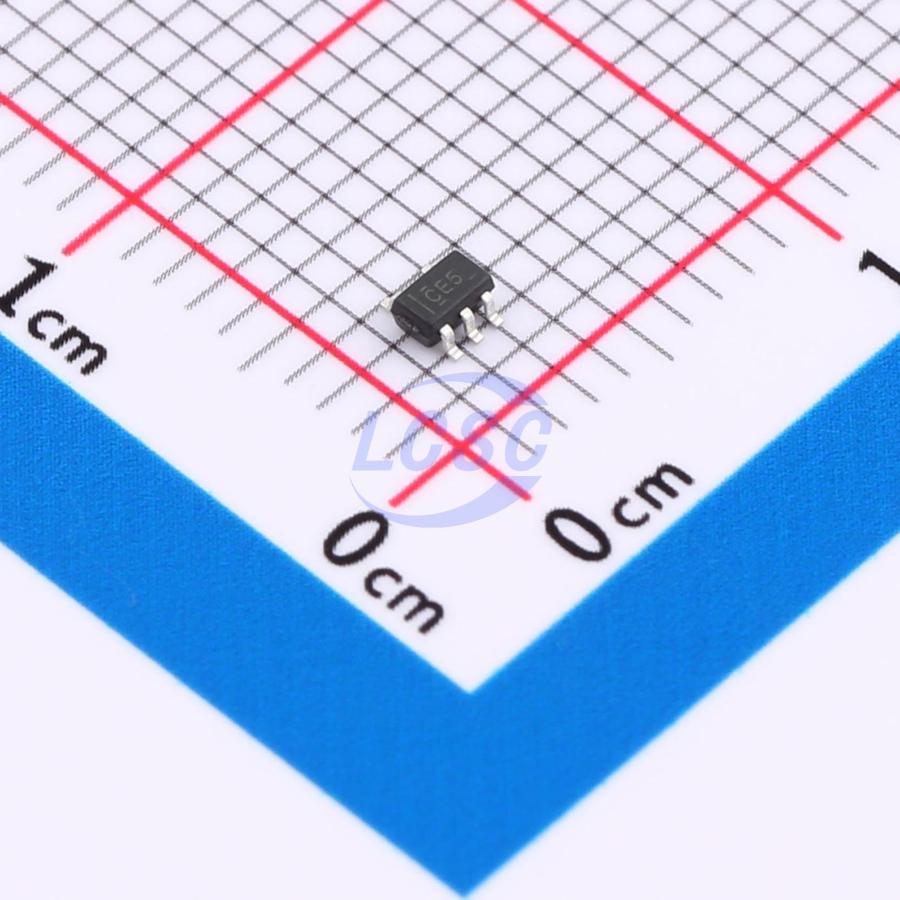

HANSCHIP semiconductorDatasheet (PDF)
74LVC1G08DCKRG
10uA 1.65V~5.5V 10ns@5V,15pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS CompliantActive
2-input AND gate integrated circuit
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74LVC1G08DCKRG
- Store part #
- C19723778
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,870 in stock
#C19723778
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.82 | ₹58.20 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.82
₹58.20
excl. GST
₹68.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08DCKRG
₹58.20 for 10 + GST
Specifications
- Operating Temperature
- -25℃~+70℃
- Input Logic Level - Low
- 700mV
- Input Logic Level - High
- 1.7V
- Logic Family
- 74LVC
- Output Logic Level - High
- 4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 350mV
- Propagation Delay
- 10ns@5V,15pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The 74LVC1G08 is a 2-input AND gate IC that implements the Boolean logic functions Y = A × B and Y = Ā + B̄. Designed with advanced CMOS technology, it features low power consumption and high output drive capability, operating normally with a supply voltage VCC ranging from 1.65V to 5.5V. Available in multiple compact package options, the 74LVC1G08 is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and artificial intelligence applications.
Applications
- Portable audio interfaces
- Digital TV
- Wireless headphones, smartwatches, etc.
- Bluetooth players and home theater systems
- Solid-state drives
- Smart wearable devices
Key features
- Low input current: typical 0.1μA
- Low quiescent current: typical 0.1μA
- High output drive: VCC = 4.5V, greater than 32mA
- Wide operating voltage range: 1.65V ~ 5.5V
- Package: SOT-23-5/SC70-5
