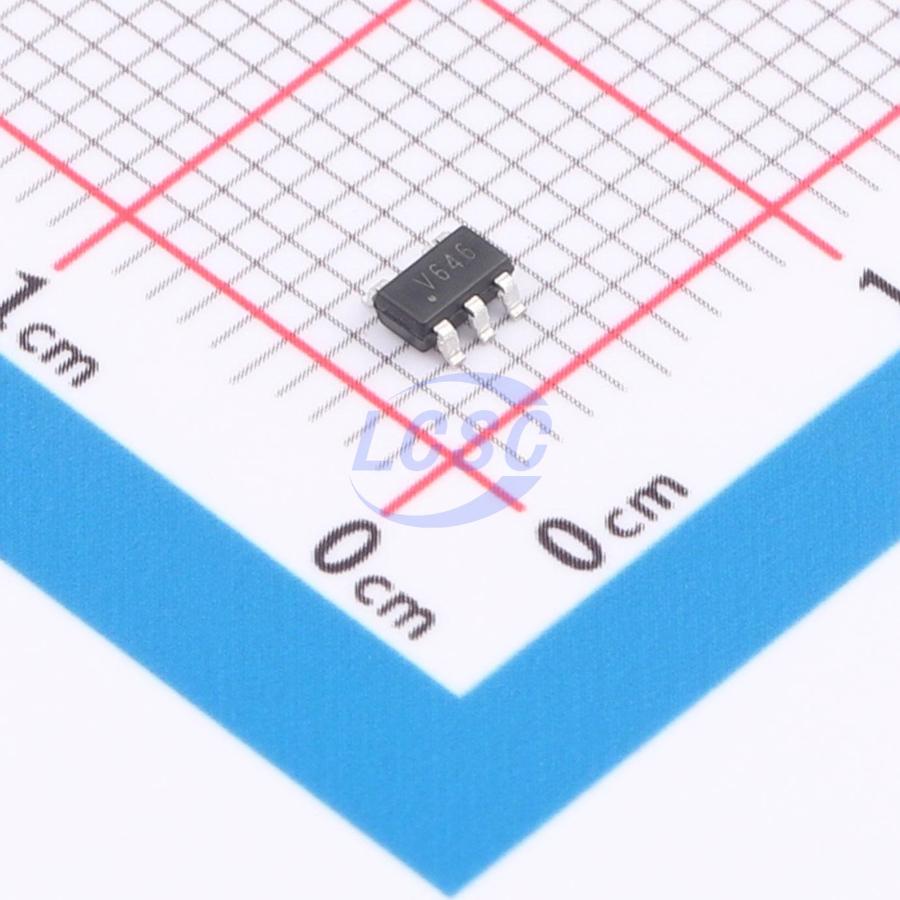

MDD(Microdiode Semiconductor)

74LVC1G08GV

Schmitt trigger 1.65V~5.5V 3.6ns@5.5V,50pF 100nA SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G08GV
Store part #: C53185136
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,540 in stock

#C53185136

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹9.50	₹95.00
100+	₹7.49	₹749.00
300+	₹6.48	₹1,944.00
3,000+	₹5.73	₹17,190.00
6,000+	₹5.12	₹30,720.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹9.50

₹95.00

excl. GST

₹112.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G08GV

₹95.00 for 10 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.6ns@5.5V,50pF
Output Logic Level - Low: 100mV;450mV;600mV;800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 100nA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.04 g

Overview

The 74LVC1G08 is a single 2-input AND gate. Its inputs can be driven by 3.3 V or 5 V devices. This feature allows the device to be used as a level translator in mixed 3.3 V and 5 V applications. Schmitt-trigger action on all inputs enables the circuit to tolerate slow input rise and fall times. The device fully supports partial power-down applications using IOFF. The IOFF circuit disables the outputs, preventing damaging backflow current when the device is powered down.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
High noise immunity
±24 mA output drive capability (VCC = 3.0 V)
CMOS low power consumption
Direct TTL-level interface compatible
Overvoltage-tolerant inputs up to 5.5 V
IOFF circuitry supports partial power-down mode operation
Latch-up performance exceeds 100 mA per JEDEC 78
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
