JSMSEMIDatasheet (PDF)

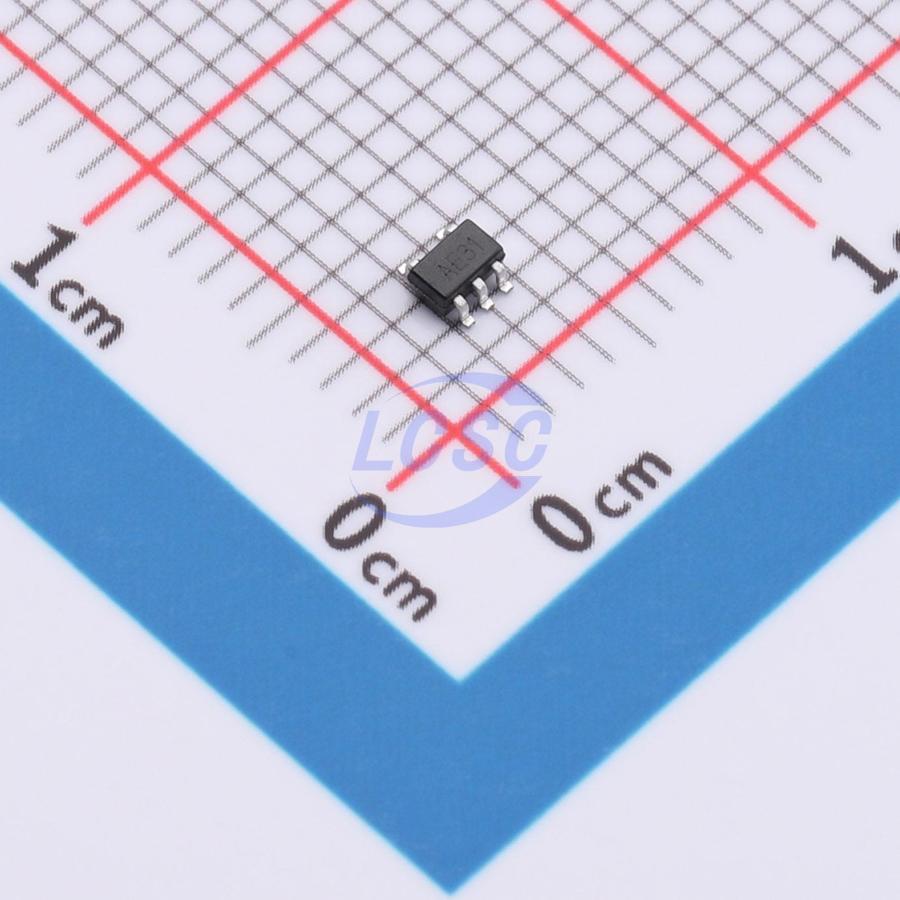

74LVC1G08GW,125-JSM
1.65V~5.5V 13.5ns@4.5V,50pF 4uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G08GW,125-JSM
- Store part #
- C53114311
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,430 in stock
#C53114311
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹6.06 | ₹606.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.70 | ₹14,100.00 |
| 6,000+ | ₹4.23 | ₹25,380.00 |
| 9,000+ | ₹4.00 | ₹36,000.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G08GW,125-JSM
₹76.10 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 13.5ns@4.5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The 74LVC1G08 provides a single 2-input AND function. The inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V applications.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive (VDD = 3.0V)
- CMOS low power consumption
- Inputs tolerant up to 5V
- Operating temperature range: -40°C ~ +125°C
- Package: SOT-23-5/SOT-353
