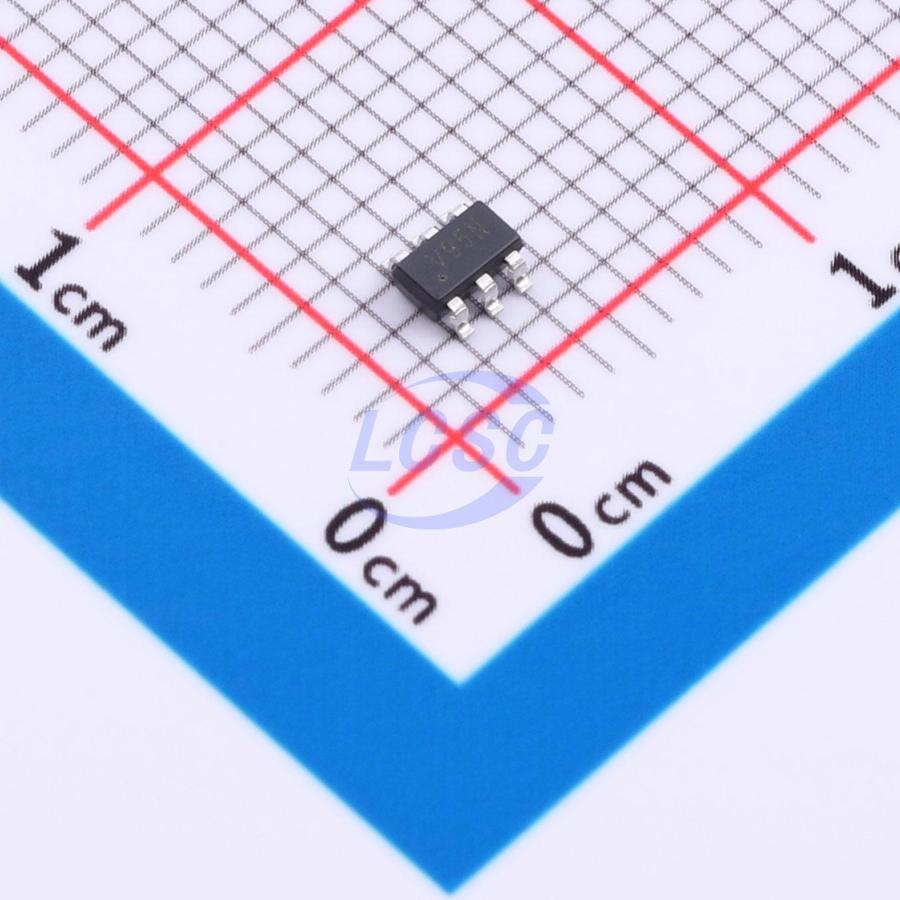

MDD(Microdiode Semiconductor)

74LVC1G11GV

Schmitt trigger 1.65V~5.5V 2.6ns@5.5V,50pF 100nA SOT-23-6L Gates and Inverters

SOT-23-6LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G11GV
Store part #: C52140424
Package / case: SOT-23-6L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,155 in stock

#C52140424

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹14.46	₹14.46
10+	₹11.40	₹114.00
30+	₹9.87	₹296.10
100+	₹8.72	₹872.00
500+	₹7.81	₹3,905.00
1,000+	₹7.34	₹7,340.00

Quantity (min 1)

1 × ₹14.46

₹14.46

excl. GST

₹17.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G11GV

₹14.46 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.6ns@5.5V,50pF
Output Logic Level - Low: 170mV~400mV;70mV~450mV;120mV~300mV;330mV~550mV;390mV~550mV
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - High: 1.7V~2V
Input Logic Level - Low: 700mV~800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V~2.62V;1.2V~1.54V;1.9V~2.15V;2.2V~2.5V;3.8V~4.11V
Quiescent Current(Iq): 100nA
Current - Output High(IOH): 24mA
Number of Channels: 1;3
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.083 g

Overview

The 74LVC1G11 is a single 3-input AND gate. Its inputs can be driven by 3.3V or 5V devices, making it suitable as a level translator in mixed 3.3V and 5V applications. All inputs feature Schmitt-trigger action, providing tolerance to slow input rise and fall times. The device is fully specified for partial power-down applications using I_OFF. The I_OFF circuitry disables the outputs, preventing damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
High noise immunity
±24 mA output drive capability (V_CC = 3.0 V)
CMOS low power consumption
Direct TTL-level interface compatible
Input overvoltage tolerance up to 5.5 V
I_OFF circuitry for partial power-down mode operation
Latch-up performance exceeds 100 mA
JEDEC compliant: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8C (2.7 V ~ 3.6 V), JESD36 (4.5 V ~ 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
