MDD(Microdiode Semiconductor)

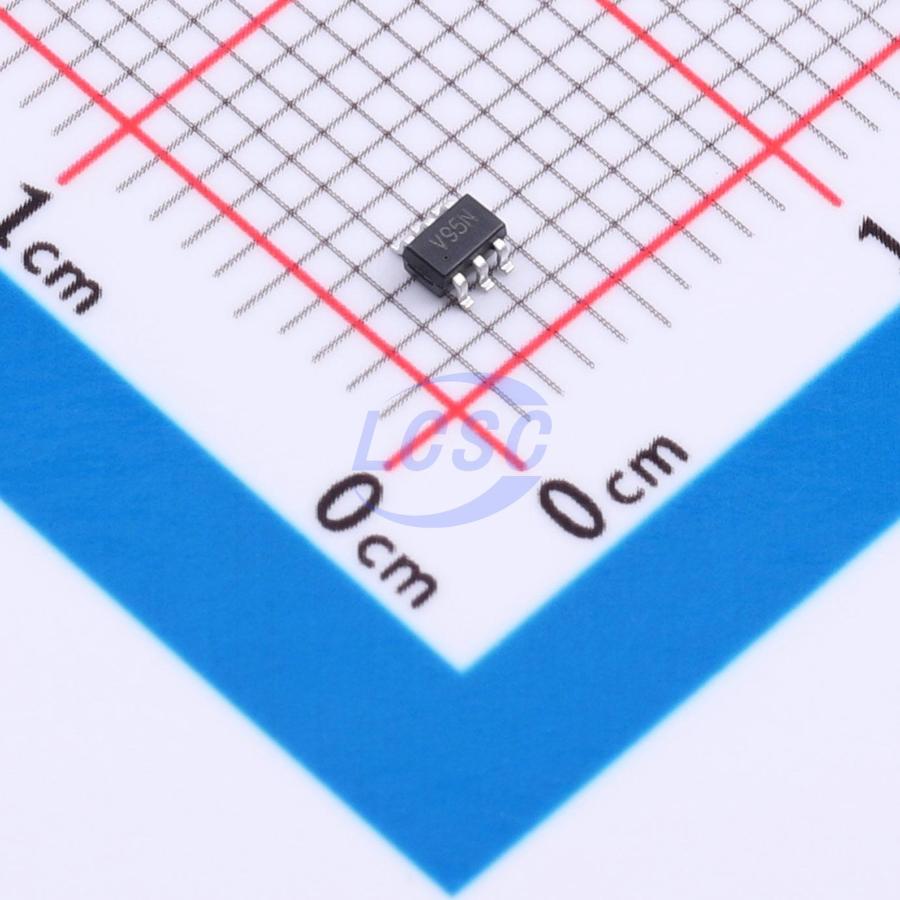

74LVC1G11GW

Schmitt trigger 1.65V~5.5V 6ns@3.3V,50pF 100nA SOT-363 Gates and Inverters

SOT-363RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G11GW
Store part #: C52140493
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,818 in stock

#C52140493

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹15.90	₹15.90
10+	₹12.54	₹125.40
30+	₹10.85	₹325.50
100+	₹9.59	₹959.00
500+	₹8.59	₹4,295.00
1,000+	₹8.08	₹8,080.00

Quantity (min 1)

1 × ₹15.90

₹15.90

excl. GST

₹18.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G11GW

₹15.90 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC Series
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 6ns@3.3V,50pF
Output Logic Level - Low: 300mV~450mV;550mV~800mV;450mV~700mV
Input Logic Level - Low: 700mV;800mV
Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - High: 1.7V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.8V~4.11V;2.3V~2.62V;1.2V~1.54V;1.9V~2.15V;2.2V~2.5V
Quiescent Current(Iq): 100nA
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.075 g

Overview

The 74LVC1G11 is a single 3-input AND gate. Its inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V applications. All inputs incorporate Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuit disables the output, preventing damaging backflow current through the device when it is powered down.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
High noise immunity
Output drive capability of ±24 mA (VCC = 3.0 V)
CMOS low power consumption
Direct TTL-level interface compatible
Input overvoltage tolerance up to 5.5 V
IOFF circuit for partial power-down mode operation
Latch-up performance exceeds 100 mA
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
