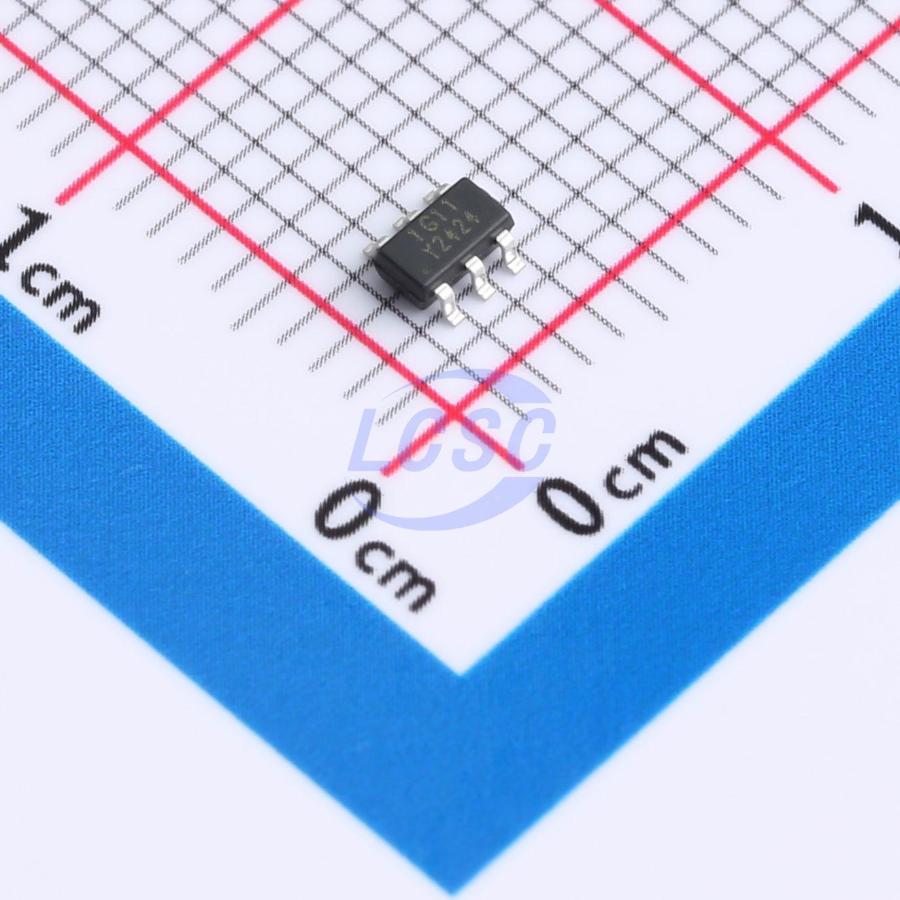

74LVC1G11S6

1.65V~5.5V 4.9ns@3.3V,50pF 10uA SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

Dual 2-lnput Positive-AND Gate

Manufacturer: Slkor
Manufacturer part #: 74LVC1G11S6
Store part #: C42380689
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C42380689

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹9.06	₹90.60
100+	₹7.17	₹717.00
300+	₹6.22	₹1,866.00
3,000+	₹5.50	₹16,500.00
6,000+	₹4.93	₹29,580.00
9,000+	₹4.66	₹41,940.00

Quantity (min 10, multiples of 10)

10 × ₹9.06

₹90.60

excl. GST

₹106.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G11S6

₹90.60 for 10 + GST

Specifications

Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 4.9ns@3.3V,50pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Input Logic Level - Low: 700mV;800mV
Input Logic Level - High: 1.7V;2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 1;3
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

This 3-input AND gate is designed for 1.65-V to 5.5-V VCC operation. The 74LVC1G11 device features a three-input AND gate. The output state is determined by eight patterns of 3-bit input. All inputs can be connected to VCC or GND. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

The 74LVC1G11 device offers logical AND configuration for many design applications. Power sequencing is often used in applications that require a processor or other delicate device with specific voltage timing requirements in order to protect the device from malfunctioning. In the application below, the power-good signals from the supplies tell the MCU to continue an operation.
