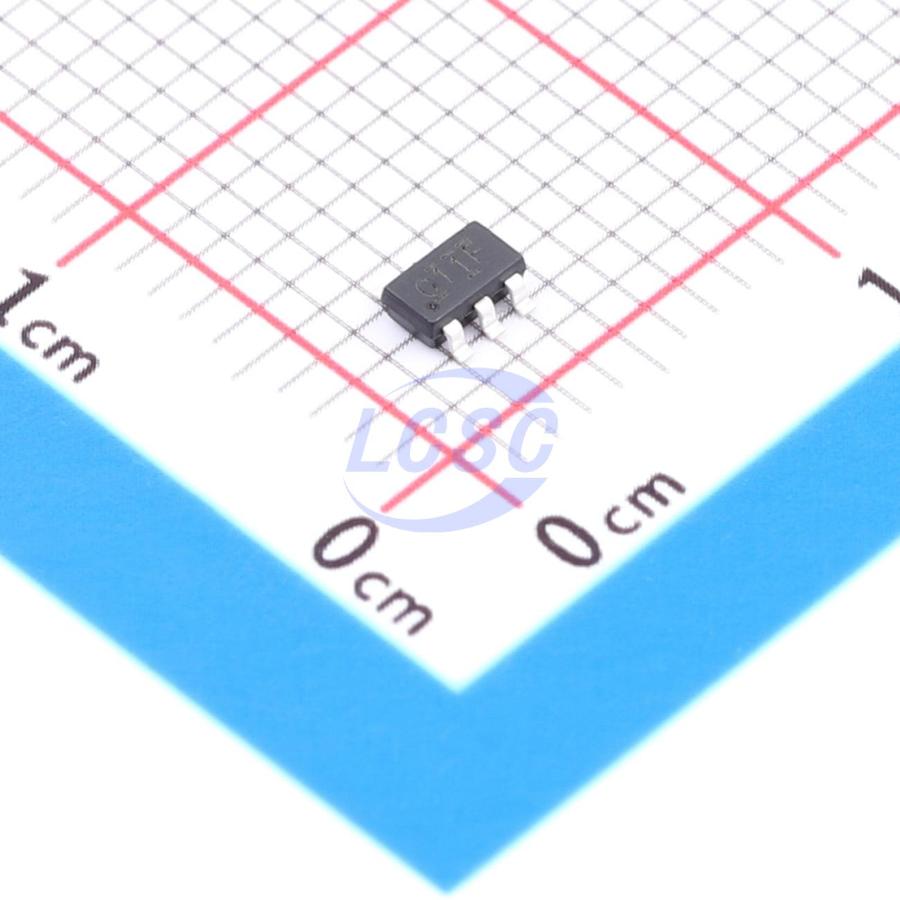

74LVC1G11W6-TP
1.65V~5.5V 4.9ns@3.3V,50pF 10uA SOT-23-6 Gates and Inverters RoHS
SOT-23-6ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G11W6-TP
- Store part #
- C51939529
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C51939529
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.52 | ₹55.20 |
| 100+ | ₹4.33 | ₹433.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.52
₹55.20
excl. GST
₹65.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G11W6-TP
₹55.20 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.9ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 3;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The device performs the Boolean AND function Y = A·B·C or Y = A + B + C (positive logic). The device is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs when the device is powered down, preventing damaging backflow current through the device.
Applications
- Audio/video receivers
- Embedded PCs
- Power supplies
Key features
- 5V VCC supply voltage
- Input voltage tolerance up to 5.5V
- Maximum propagation delay of 4.1ns at 3.3V
- Low power consumption, maximum quiescent current 10μA
- ±24mA output drive capability at 3.3V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G11DBVR-TP#C51939610TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,540 | ₹5.89 · 2,540 in stock | View |
 | 74LVC1G11GV-TP#C51939528TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,430 | ₹5.89 · 3,430 in stock | View |
 | TP74LVC1G11S6#C51939625TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,550 | ₹6.52 · 2,550 in stock | View |
