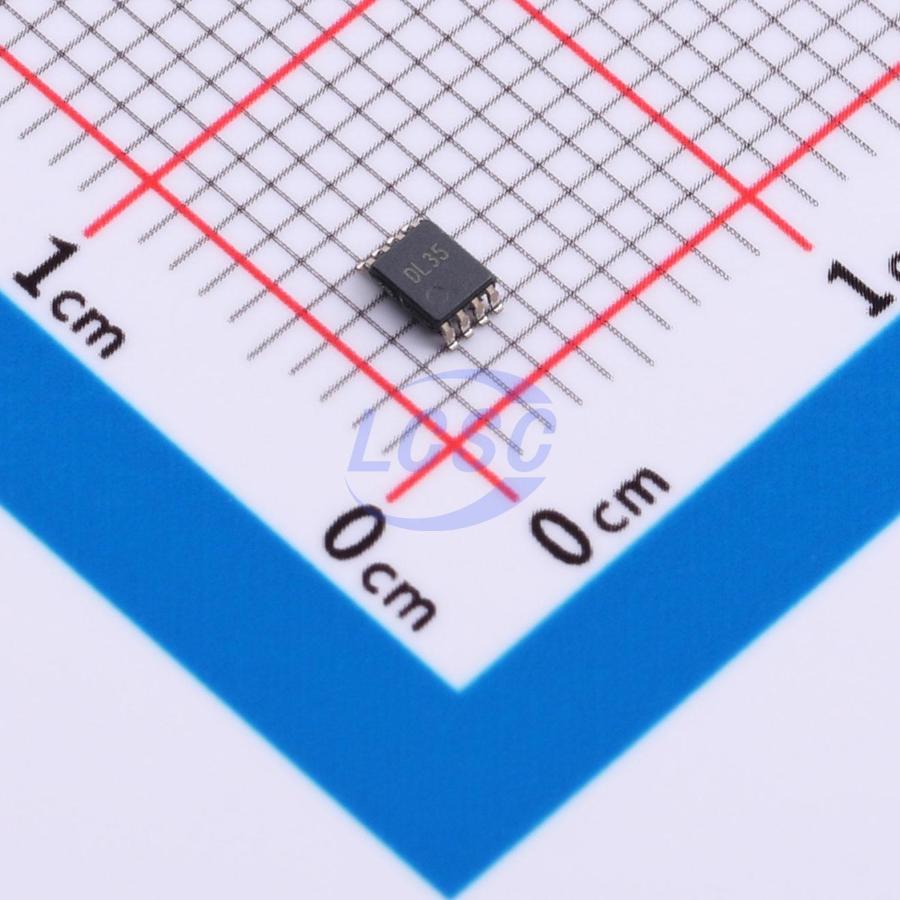

74LVC1G123DC,125-JSM
VSSOP-8 Multivibrators RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G123DC,125-JSM
- Store part #
- C53114387
- Package / case
- VSSOP-8
- Category
- Multivibrators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,235 in stock
#C53114387
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.61 | ₹163.05 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹22.89 | ₹3,433.50 |
| 500+ | ₹19.24 | ₹9,620.00 |
| 3,000+ | ₹17.62 | ₹52,860.00 |
| 6,000+ | ₹16.64 | ₹99,840.00 |
5 × ₹32.61
₹163.05
excl. GST
₹192.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G123DC,125-JSM
₹163.05 for 5 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The 74LVC1G123 is a single retriggerable monostable multivibrator with Schmitt-trigger inputs. Output pulse width can be controlled in three ways: the base pulse width is set by selecting external resistor R_EXT and capacitor C_EXT; once triggered, the output pulse width can be extended by retriggering via a falling edge on pin A or a rising edge on pin B — repeating this process allows the output high period to match the desired duration as closely as possible; a rising edge on the CLR pin can also trigger the circuit. Suitable for industrial control, consumer electronics, and communications equipment.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive capability (V_CC = 3.0V)
- CMOS low power consumption
- Retriggerable for extra-long pulses up to 100% duty cycle
- I/O pins in high-impedance state when V_CC = 0V
- Reset function
- Schmitt-trigger inputs on all pins
- Inputs tolerant of 5.5V signals
- Operating temperature range: -40℃ ~ +105℃
- Package: TSSOP8/VSSOP8
