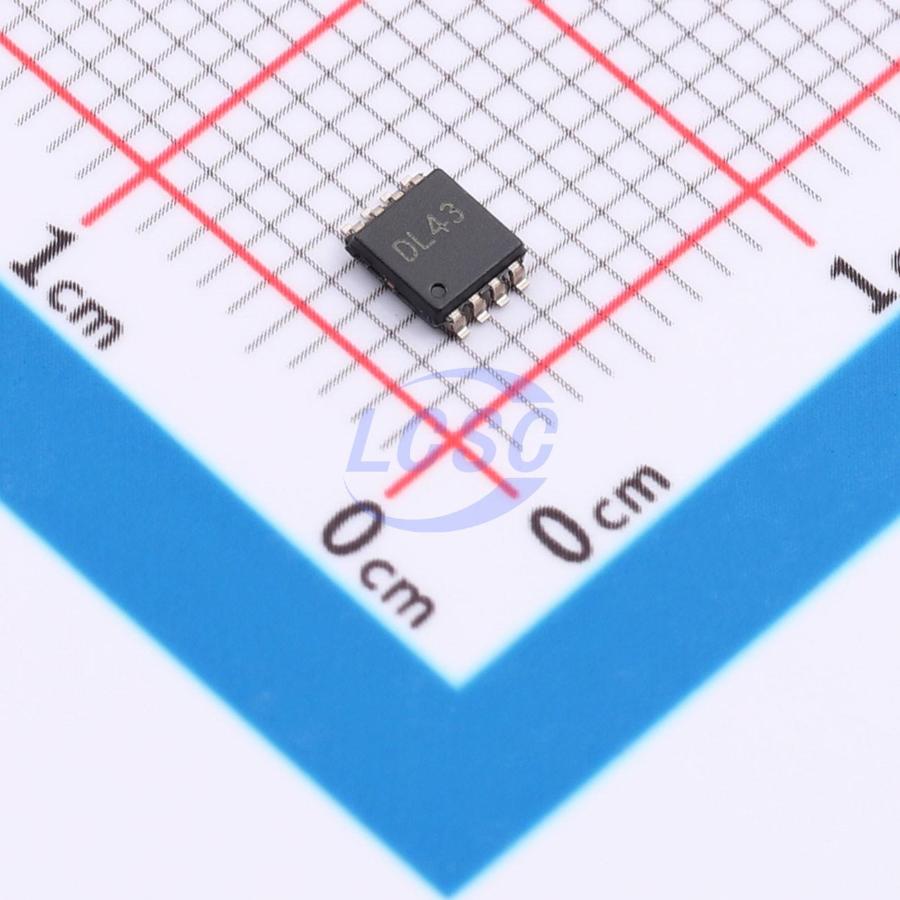

74LVC1G123DP,125-JSM
TSSOP-8 Multivibrators RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G123DP,125-JSM
- Store part #
- C53114435
- Package / case
- TSSOP-8
- Category
- Multivibrators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C53114435
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.16 | ₹220.80 |
| 50+ | ₹34.93 | ₹1,746.50 |
| 150+ | ₹30.97 | ₹4,645.50 |
| 500+ | ₹26.05 | ₹13,025.00 |
| 3,000+ | ₹23.85 | ₹71,550.00 |
| 6,000+ | ₹22.53 | ₹1,35,180.00 |
5 × ₹44.16
₹220.80
excl. GST
₹260.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G123DP,125-JSM
₹220.80 for 5 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
This device is a single retriggerable monostable multivibrator with Schmitt trigger inputs. The output pulse width can be controlled by three methods: the basic pulse width is determined by the selection of external resistor R_EXT and capacitor C_EXT; once triggered, the output pulse width can be extended by retriggering via a falling edge on input A or a rising edge on input B — by repeating this process, the output high period can meet the desired requirements; a rising edge on the CLR input can also trigger the circuit.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive capability (at V_CC = 3.0V)
- CMOS low power consumption
- Retriggerable, supports ultra-long pulses up to 100% duty cycle
- I/O pins in high-impedance state when V_CC = 0V
- Reset function
- Schmitt-trigger inputs on all input pins
- Inputs tolerant of 5.5V signals
- Rated operating temperature range: -40℃ ~ +105℃
- Package: TSSOP8/VSSOP8
