TDSEMICDatasheet (PDF)

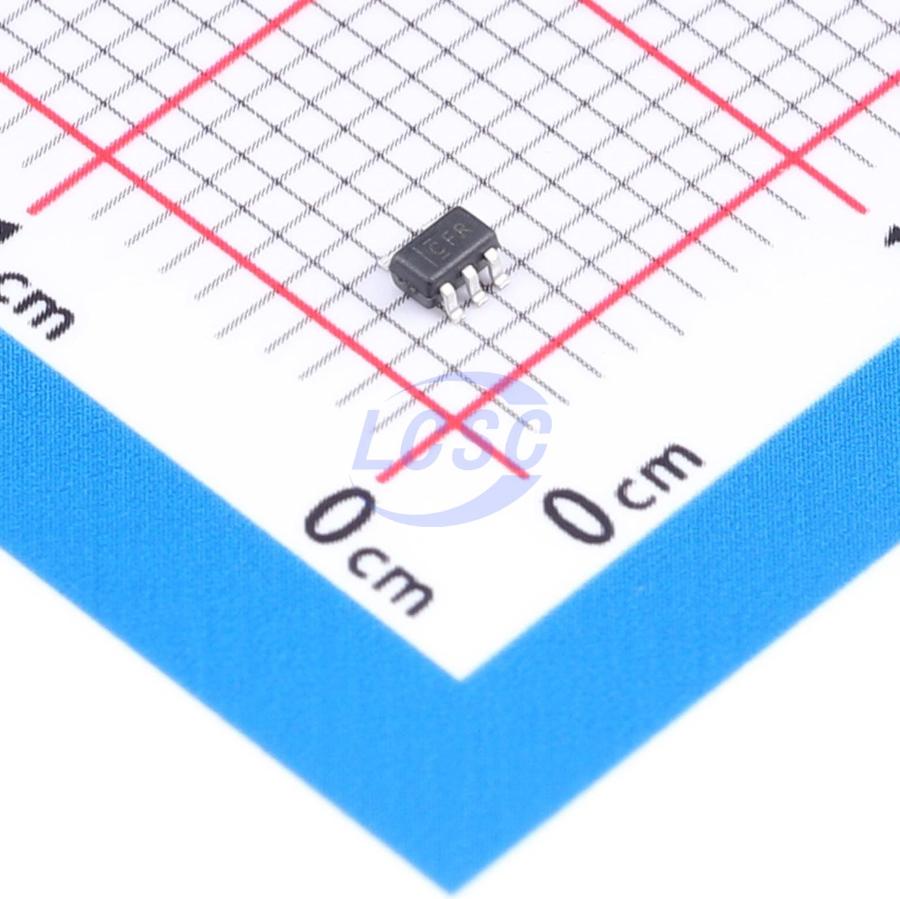

74LVC1G14DCKR-TD
Schmitt trigger 1.65V~5.5V 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74LVC1G14DCKR-TD
- Store part #
- C53463557
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C53463557
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.69 | ₹56.90 |
| 100+ | ₹4.51 | ₹451.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 3,000+ | ₹3.48 | ₹10,440.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.69
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G14DCKR-TD
₹56.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 90mV;100mV;150mV;250mV
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.47V;2.15V;2.8V;2.7V;4.2V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.165 g
Overview
This single Schmitt-trigger inverter is designed for VCC operation from 1.65V to 5.5V. The 74LVC1G14 device contains one inverter that performs the Boolean function Y = A. The device operates as a standalone inverter with Schmitt-trigger input, providing different input threshold levels for positive-going (VT+) and negative-going (VT−) signals to deliver hysteresis (△VT), which enables the device to tolerate slow or noisy input signals.
Key features
- 5V Vcc operation supported
- Inputs accept voltages up to 5.5V
- Low power consumption, max Icc of 10μA
- Output drive of ±24mA at 3.3V
- Ioff supports partial power-down mode operation
