MDD(Microdiode Semiconductor)

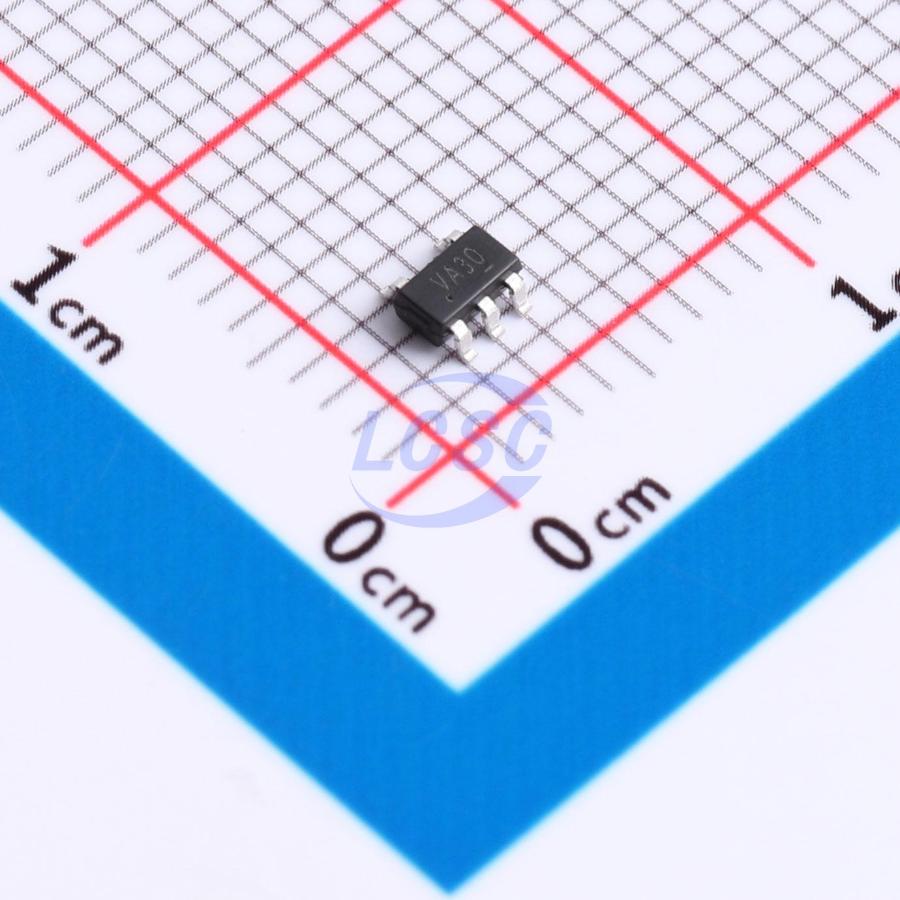

74LVC1G14GV

Schmitt trigger 1.65V~5.5V 2.9ns@5V,50pF 4uA 1 SOT-23-5L Gates and Inverters

SOT-23-5LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G14GV
Store part #: C52140412
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,861 in stock

#C52140412

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹11.95	₹11.95
10+	₹9.42	₹94.20
30+	₹8.15	₹244.50
100+	₹7.21	₹721.00
500+	₹6.44	₹3,220.00
1,000+	₹6.07	₹6,070.00

Quantity (min 1)

1 × ₹11.95

₹11.95

excl. GST

₹14.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14GV

₹11.95 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.9ns@5V,50pF
Output Logic Level - Low: 70mV;120mV;170mV;330mV;390mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.54V;2.15V;2.5V;2.62V;4.11V
Quiescent Current(Iq): 4uA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The 74LVC1G14 is a single Schmitt-trigger inverter. Its inputs can be driven by 3.3V or 5V devices, making it suitable as a level translator in mixed 3.3V/5V environments. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output when the device is powered down, preventing potentially damaging backflow current from flowing through the device.

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Overvoltage-tolerant inputs up to 5.5 V
High noise immunity
±24 mA output drive capability (at VCC = 3.0 V)
CMOS low power consumption
Latch-up performance exceeds 100 mA
Direct TTL-level interface capability
IOFF circuit supports partial power-down mode operation
Unlimited rise and fall times
Compliant with JEDEC standards: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V, MM JESD22-A115C Class C exceeds 550 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
