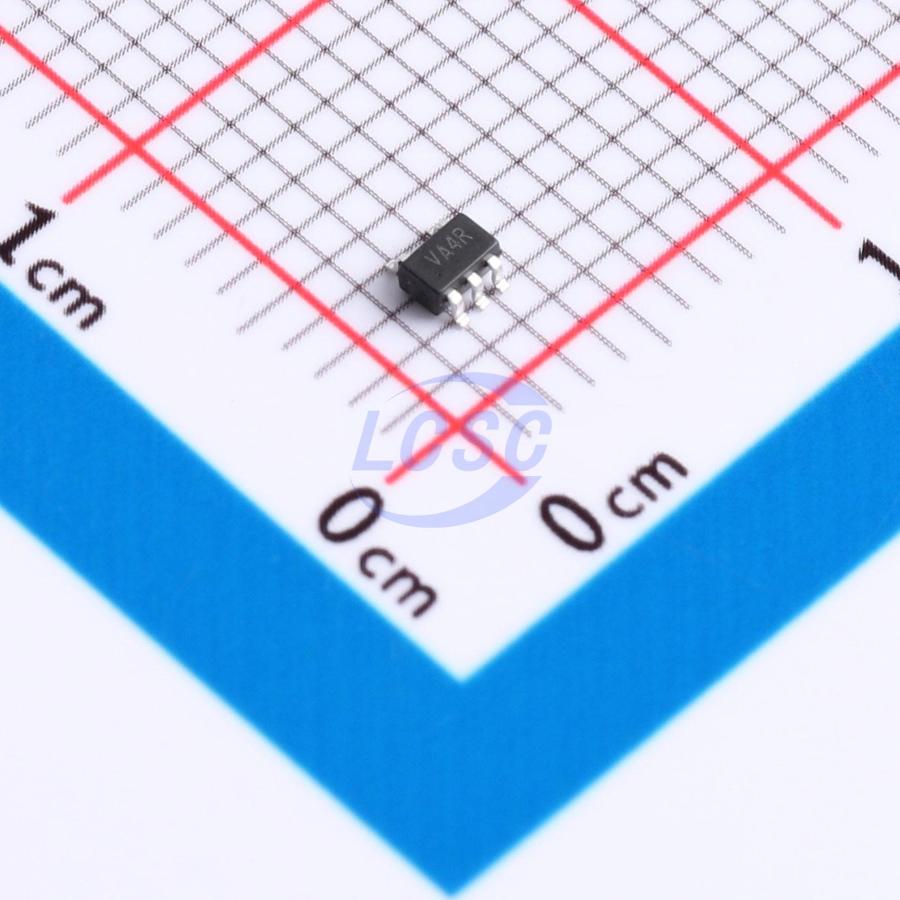

MDD(Microdiode Semiconductor)

74LVC1G14GW

Schmitt trigger 1.65V~5.5V 2.9ns@5V,50pF 4uA 1 SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74LVC1G14GW
Store part #: C52140428
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,378 in stock

#C52140428

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
1+	₹12.49	₹12.49
10+	₹9.84	₹98.40
30+	₹8.52	₹255.60
100+	₹7.53	₹753.00
500+	₹6.73	₹3,365.00
1,000+	₹6.34	₹6,340.00

Quantity (min 1)

1 × ₹12.49

₹12.49

excl. GST

₹14.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14GW

₹12.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 2.9ns@5V,50pF
Output Logic Level - Low: 100mV~800mV
Features: Power shutdown protection;Noise suppression function
Input Logic Level - Low: 460mV~1.58V
Input Logic Level - High: 1.14V~2.79V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V~3.8V
Quiescent Current(Iq): 4uA
Number of Channels: 1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.073 g

Overview

74LVC1G14 is a single inverter with Schmitt-trigger input. The input can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V environments. The device is fully specified for partial-power-down applications using I_OFF. The I_OFF circuit disables the output when the device is powered down, preventing potentially damaging backflow current from flowing through the device.

Key features

Wide supply voltage range: 1.65 V ~ 5.5 V
Over-voltage tolerant inputs up to 5.5 V
High noise immunity
±24 mA output drive capability (at VCC = 3.0 V)
CMOS low power consumption
Latch-up performance exceeds 100 mA
Direct TTL-level interface compatible
I_OFF circuitry enables partial power-down mode operation
Unlimited rise and fall times
JEDEC standard compliant: JESD8-7 (1.65 V ~ 1.95 V), JESD8-5 (2.3 V ~ 2.7 V), JESD8C (2.7 V ~ 3.6 V), JESD36 (4.5 V ~ 5.5 V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000 V; MM JESD22-A115C Class C exceeds 550 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
Multiple package options
