JSMSEMIDatasheet (PDF)

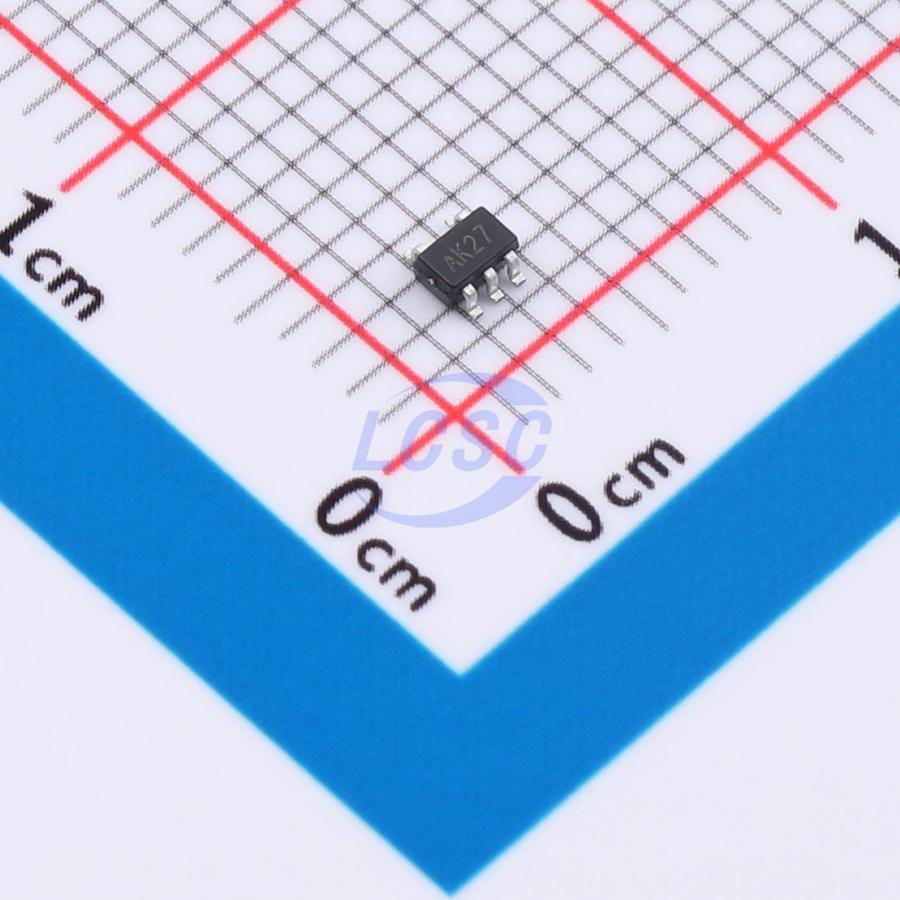

74LVC1G14GW-JSM
Schmitt trigger 1.65V~5.5V 10ns@5.5V,50pF 4uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G14GW-JSM
- Store part #
- C53114443
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C53114443
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.33 | ₹73.30 |
| 100+ | ₹5.85 | ₹585.00 |
| 300+ | ₹5.09 | ₹1,527.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹7.33
₹73.30
excl. GST
₹86.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G14GW-JSM
₹73.30 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 10ns@5.5V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
74LVC1G14 is a single Schmitt-trigger inverter. Its inputs are compatible with 3.3V or 5V logic levels, making it suitable for mixed 3.3V/5V voltage environments.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- Input supports up to 5.5V
- ±24mA output drive capability at 3.0V supply
- High-impedance output when VCC = 0V
- Operating temperature range: -40℃ ~ +125℃
- Package types: SOT23-5, SOT353, XSON6
