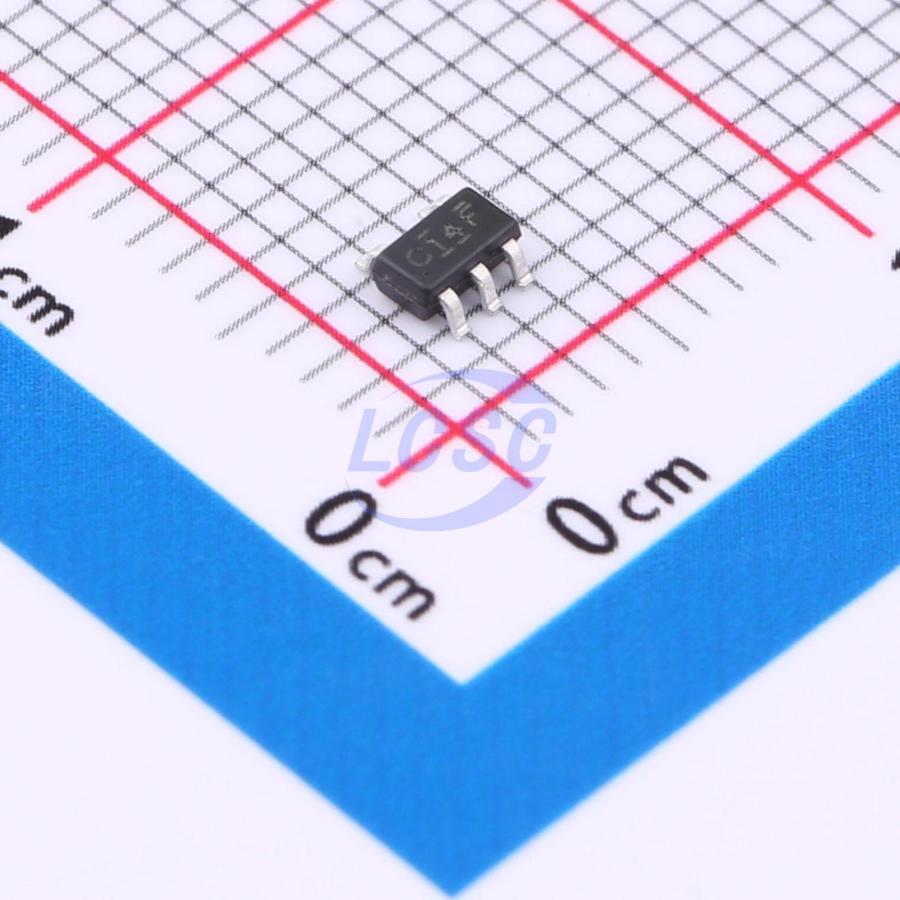

74LVC1G14LT05ARCQ

Schmitt trigger 1.65V~5.5V 10uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Single Schmitt-Trigger Inverter

Manufacturer: GR
Manufacturer part #: 74LVC1G14LT05ARCQ
Store part #: C46527074
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,420 in stock

#C46527074

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹5.11	₹102.20
200+	₹4.06	₹812.00
600+	₹3.55	₹2,130.00
3,000+	₹3.15	₹9,450.00
9,000+	₹2.83	₹25,470.00
21,000+	₹2.67	₹56,070.00

Quantity (min 20, multiples of 20)

20 × ₹5.11

₹102.20

excl. GST

₹120.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC1G14LT05ARCQ

₹102.20 for 20 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 90mV;100mV;150mV;250mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: 0℃~+70℃
Output Logic Level - High: 1.47V;2.15V;2.8V;2.7V;4.2V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.058 g

Overview

This single-channel Schmitt-trigger inverter is designed for VCC operating voltages from 1.65V to 5.5V. The 74LVC1G14 device contains one inverter that performs the Boolean function Y = Ā. The device operates as a standalone inverter with Schmitt-trigger inputs, so the device has different input threshold levels for rising-edge (VT+) and falling-edge (VT−) signals to provide hysteresis (ΔVT), which allows the device to tolerate slow or noisy input signals.
