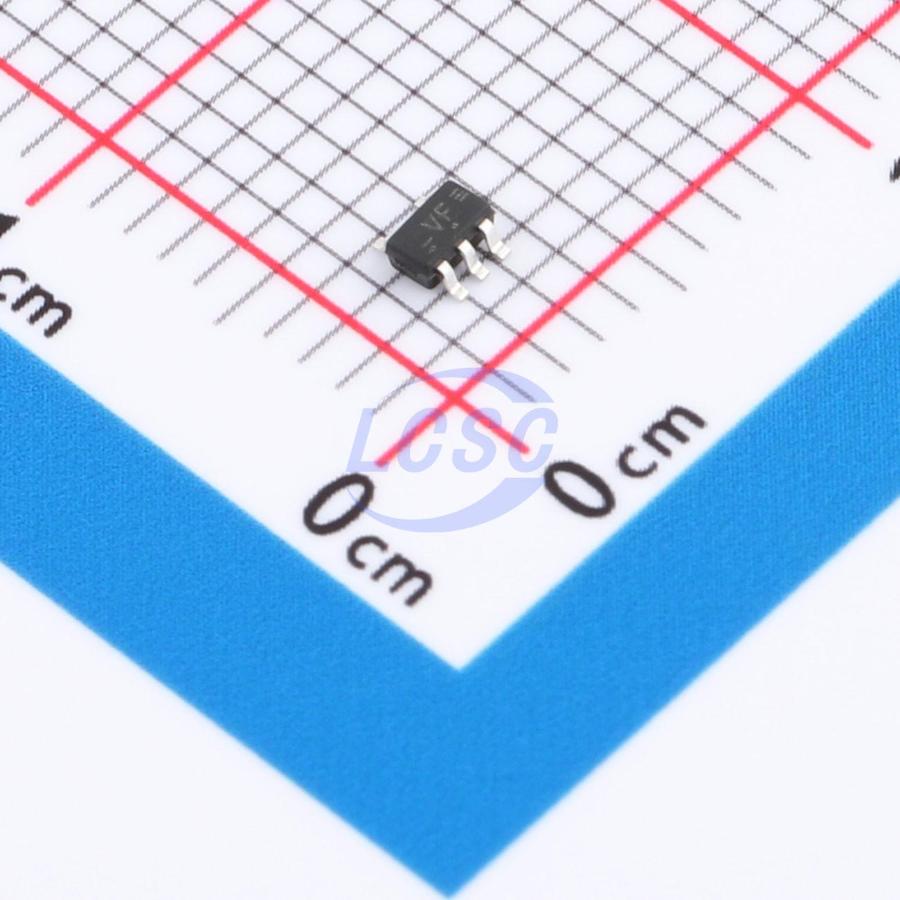

74LVC1G14SE-TP
Schmitt trigger 1.65V~5.5V 4ns@5.5V,50pF 10uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G14SE-TP
- Store part #
- C52098133
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C52098133
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G14SE-TP
₹58.50 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4ns@5.5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function;Power-off protection function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC1G14 is a single Schmitt-trigger inverter with the function Y = A. Due to the Schmitt-trigger action at the input, the device has different input threshold levels for positive-going and negative-going signals. The device features a power-down protection circuit that prevents damage during power-down conditions.
Key features
- Operating voltage range: 1.65V~5.5V
- Low quiescent current: I_CC = 10μA (max)
- ±24mA output drive capability (VCC=3.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
