JSMSEMIDatasheet (PDF)

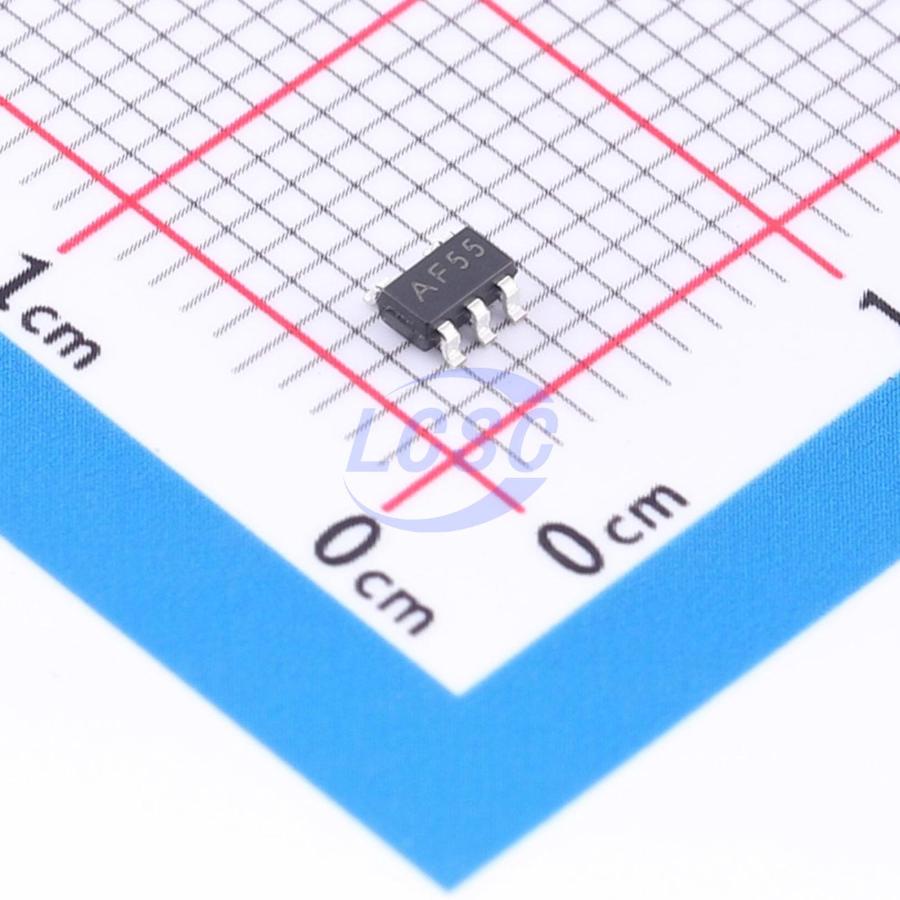

74LVC1G17GV,125-JSM
1.65V~5.5V 15ns@4.5V,50pF 4uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G17GV,125-JSM
- Store part #
- C53436287
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,090 in stock
#C53436287
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.77 | ₹87.70 |
| 100+ | ₹6.97 | ₹697.00 |
| 300+ | ₹6.09 | ₹1,827.00 |
| 3,000+ | ₹5.41 | ₹16,230.00 |
| 6,000+ | ₹4.87 | ₹29,220.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹8.77
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GV,125-JSM
₹87.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 15ns@4.5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The 74LVC1G17 provides a buffer function with Schmitt-trigger input, capable of converting slowly changing input signals into clean, well-defined outputs. The inputs can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments. Available in SOT-23-5 package.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Direct TTL-level interface
- Unlimited rise and fall times
- Inputs accept voltages up to 5V
- Operating temperature range: -40°C ~ +125°C
- Package options: SOT-23-5/SOT-353/XSON6
