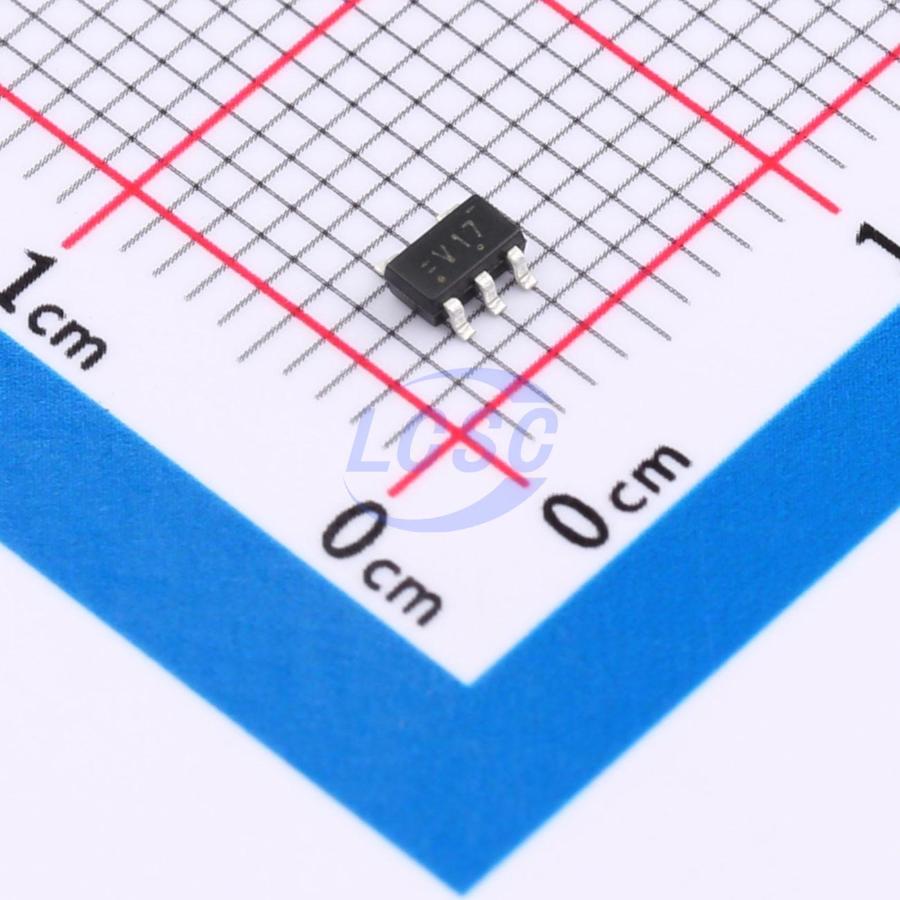

74LVC1G17GV
Schmitt trigger 1.65V~5.5V 8.3ns@5V,50pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE SCHMITT-TRIGGER BUFFER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G17GV
- Store part #
- C19829593
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,370 in stock
#C19829593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G17GV
₹74.70 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 8.3ns@5V,50pF
- Output Logic Level - Low
- 100mV;300mV;400mV;550mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74LVC1G17 is a single Schmitt-trigger buffer with the function Y = A. Due to the Schmitt-trigger action at the input, the device has different input threshold levels for rising signals (V_T+) and falling signals (V_T-). This device incorporates a power-off protection circuit to prevent damage during power-down conditions.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Low quiescent current: I_CC = 10μA (maximum)
- ±24mA output drive capability (VCC=3.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 1000-V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
